IDC Select® IDC 3C050SK IDC3C050SK

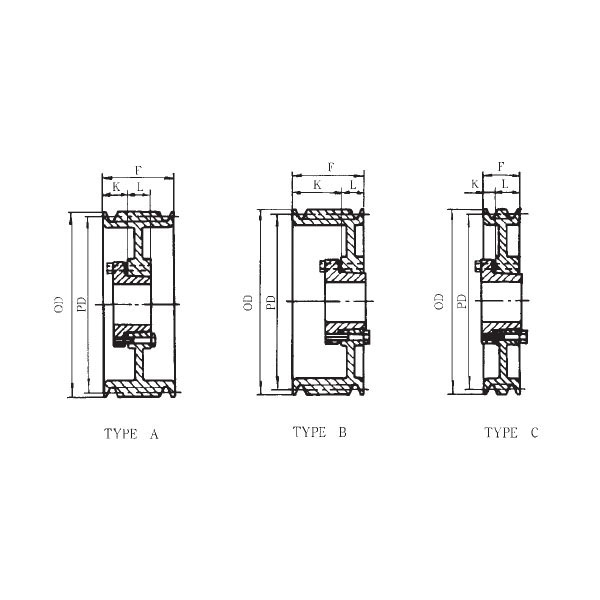

IDC Select® QD®® IDC 3C050SK Heavy Duty Type A-1 Solid Sheave, QD® Bore, 5.4 in OD, 3 Grooves, 5 in Dia Pitch, 3-3/8 in W Face

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDC3C050SK
  • MPN: IDC 3C050SK
  • UPC: 887412113029
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

IDC Select® classical A/B combination, C and D sheaves, and narrow 3V, 5V, and 8V sheaves are available in QD® bushing designs. They are precision machined from 30 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.

IDC Select® QD®® Sheave, Heavy Duty Type A-1 Solid, QD® Bore, 5.4 in OD, 5 in Pitch Diameter, 3 Grooves, 3-3/8 in Face Width, SK Bushing, For Use With: C-Cross Section V-Belts, Cast Iron, Baked Enamel

Bore Type      :      QD®
Bushing Type      :      SK
Face Width      :      3-3/8 in
Finish      :      Baked Enamel
Material      :      Cast Iron
Number of Grooves      :      3
Outside Diameter      :      5.4 in
Pitch Diameter      :      5 in
Suitable For Use With      :      C-Cross Section V-Belts
Type      :      Heavy Duty Type A-1 Solid
  • Precision machined from gray cast iron
  • Statically balanced
  • Cast iron sheaves should not exceed 6500 fpm rim speed
  • Special or dynamic balancing should be considered when speeds exceed 5000 fpm
  • Accepts QD® style bushings
