IDC Select® IDC 3BK080H IDC3BK080H

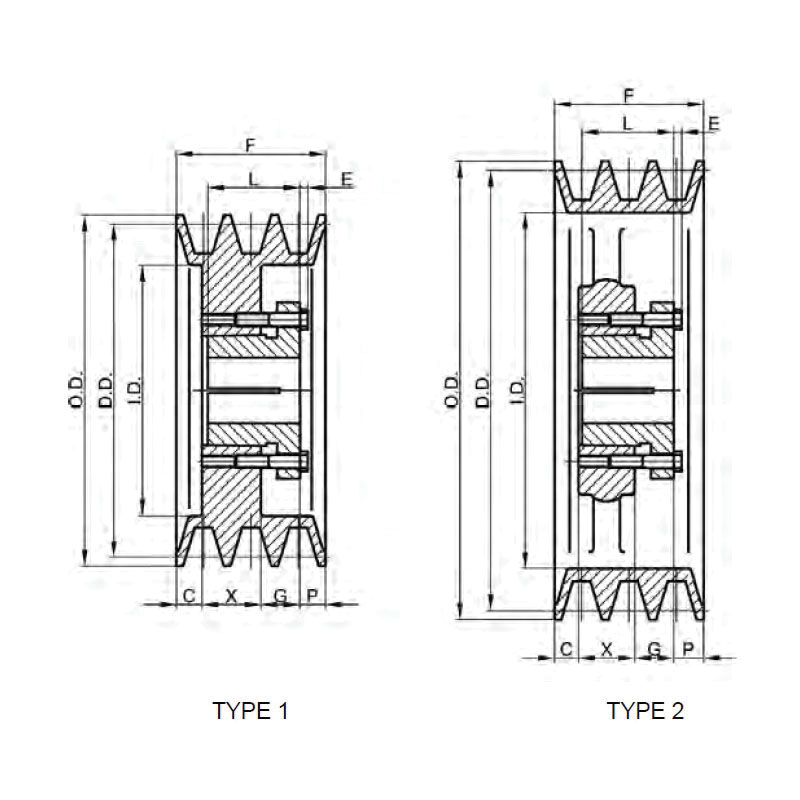

IDC Select® IDC 3BK080H Light Duty Type 3 Sheave, 7-3/4 in OD, 3 Grooves, 7.4 in Dia Pitch, 2-1/2 in W Face

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDC3BK080H
  • MPN: IDC 3BK080H
  • UPC: 887412009315
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

IDC Select® light duty H bushed sheaves are available in A section single and two groove design and B section single, two groove and three groove designs for A-B and 3L-4L-5L belts. Each unit comes designed to be compatible with the H design bushing. They are precision machined from 25 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.

IDC Select® Sheave, Light Duty Type 3, 7-3/4 in Outside Dia, 7.4 in, 3 Grooves, 2-1/2 in Face Width, H Bushing, For Use With: 4L/A and 5L/B Cross Section V-Belts, Class 25 Cast Iron, Baked Enamel

Bushing Type      :      H
Face Width      :      2-1/2 in
Finish      :      Baked Enamel
Material      :      Class 25 Cast Iron
Number of Grooves      :      3
Outside Diameter      :      7-3/4 in
Pitch Diameter      :      7.4 in
Suitable For Use With      :      4L/A and 5L/B Cross Section V-Belts
Type      :      Light Duty Type 3
  • Precision machined from gray cast iron
  • Statically balanced
  • Cast iron sheaves should not exceed 6500 fpm rim speed
  • Special or dynamic balancing should be considered when speeds exceed 5000 fpm
  • 7 in Dia pitch 4L(A)/7.4 in Dia pitch 5L(B)
