IDC Select® IDC 3BK034-7/8 Light Duty Type 1 Sheave With 3/16 x 3/32 in Keyway and Setscrew, 7/8 in Bored to Size Bore, 3.55 in OD, 3 Grooves, 3.2 in Dia Pitch, 2-1/2 in W Face
- Manufacturer: IDC Select
- Brand Name: IDC Select®
- Part Number: IDC3BK0347/8
- MPN: IDC 3BK034-7/8
- UPC: 887412016368
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
IDC Select® light duty bored-to-size sheaves are available in single and two groove designs for A-B and 3L-4L-5L belts. Each unit is supplied with a keyway and a set screw over the keyway. They are precision machined from 25 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.

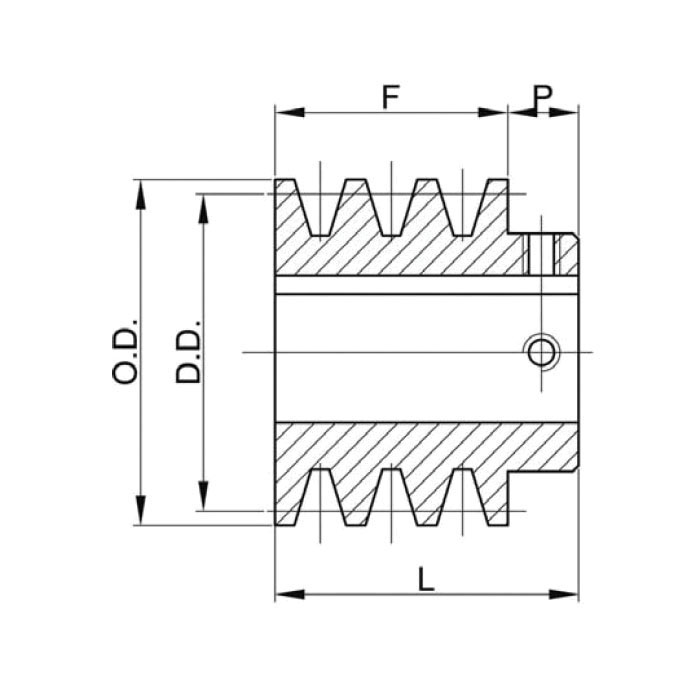

IDC Select® Sheave, Light Duty Type 1, Bored to Size Bore, 7/8 in Bore Dia, 3.55 in Outside Dia, 3.2 in, 3 Grooves, 2-1/2 in Face Width, 1/2 in Hub Projection, 3 in Overall Length, For Use With: 4L/A and 5L/B Cross Section V-Belts, Class 25 Cast Iron, Baked Enamel
| Bore Diameter | : | 7/8 in |
| Bore Type | : | Bored to Size |
| Face Width | : | 2-1/2 in |
| Finish | : | Baked Enamel |
| Hub Projection | : | 1/2 in |
| Material | : | Class 25 Cast Iron |
| Number of Grooves | : | 3 |
| Outside Diameter | : | 3.55 in |
| Overall Length | : | 3 in |
| Pitch Diameter | : | 3.2 in |
| Suitable For Use With | : | 4L/A and 5L/B Cross Section V-Belts |
| Type | : | Light Duty Type 1 |
- Precision machined from gray cast iron
- Statically balanced
- Cast iron sheaves should not exceed 6500 fpm rim speed
- Special or dynamic balancing should be considered when speeds exceed 5000 fpm
- 2.8 in Dia pitch 4L(A)/3.2 in Dia pitch 5L(B)
