IDC Select® IDC 3/3V1900SF IDC3/3V1900SF

IDC Select® IDC 3/3V1900SF Heavy Duty Type D-3 Arm/Spoke Sheave, QD® Bore, 19 in OD, 3 Grooves, 18.95 in Dia Pitch, 1-1/2 in W Face

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDC3/3V1900SF
  • MPN: IDC 3/3V1900SF
  • UPC: 887412000640
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

IDC Select® classical A/B combination, C and D sheaves, and narrow 3V, 5V, and 8V sheaves are available in QD® bushing designs. They are precision machined from 30 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.

IDC Select® Sheave, Heavy Duty Type D-3 Arm/Spoke, QD® Bore, 19 in OD, 18.95 in Pitch Diameter, 3 Grooves, 1-1/2 in Face Width, SF Bushing, For Use With: 3V-Cross Section V-Belts, Cast Iron, Baked Enamel

Bore Type      :      QD®
Bushing Type      :      SF
Face Width      :      1-1/2 in
Finish      :      Baked Enamel
Material      :      Cast Iron
Number of Grooves      :      3
Outside Diameter      :      19 in
Pitch Diameter      :      18.95 in
Suitable For Use With      :      3V-Cross Section V-Belts

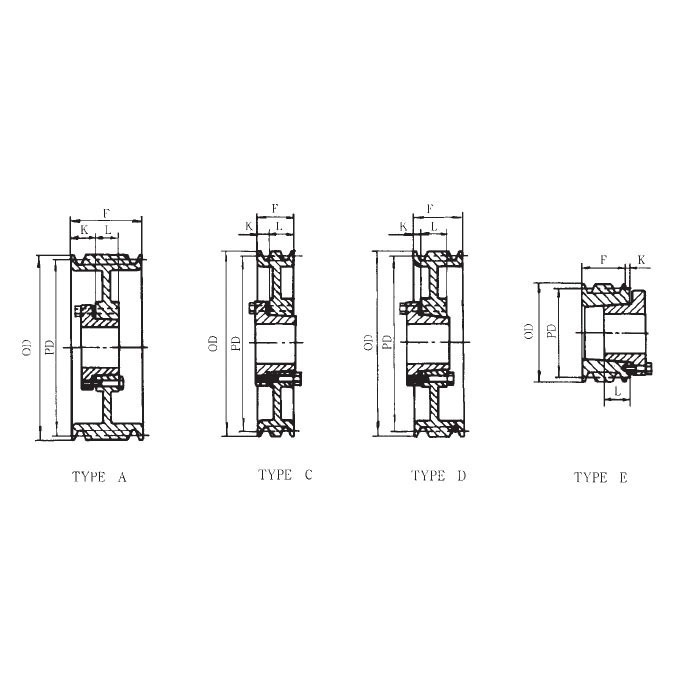

Type      :      Heavy Duty Type D-3 Arm/Spoke
  • Precision machined from gray cast iron
  • Statically balanced
  • Cast iron sheaves should not exceed 6500 fpm rim speed
  • Special or dynamic balancing should be considered when speeds exceed 5000 fpm
  • Accepts QD® style bushings
