IDC Select® IDC 2C075SF IDC2C075SF

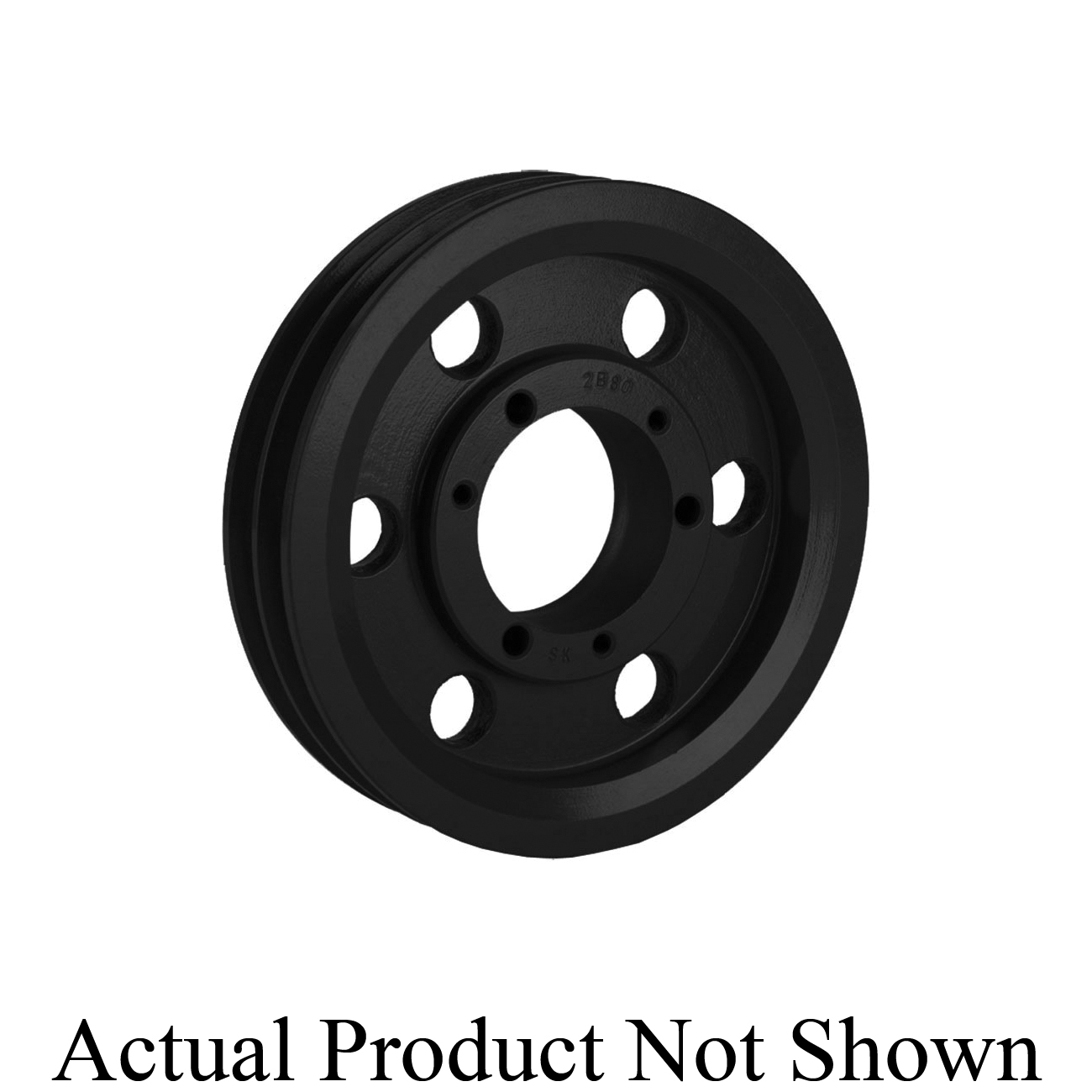

IDC Select® QD®® IDC 2C075SF Heavy Duty Type D-1 Solid Sheave, QD® Bore, 7.9 in OD, 2 Grooves, 7-1/2 in Dia Pitch, 2-3/8 in W Face

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDC2C075SF
  • MPN: IDC 2C075SF
  • UPC: 887412006536
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

IDC Select® classical A/B combination, C and D sheaves, and narrow 3V, 5V, and 8V sheaves are available in QD® bushing designs. They are precision machined from 30 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.

IDC Select® QD®® Sheave, Heavy Duty Type D-1 Solid, QD® Bore, 7.9 in OD, 7-1/2 in Pitch Diameter, 2 Grooves, 2-3/8 in Face Width, SF Bushing, For Use With: C Cross Section V-Belt, Cast Iron, Baked Enamel

Bore Type      :      QD®
Bushing Type      :      SF
Face Width      :      2-3/8 in
Finish      :      Baked Enamel
Material      :      Cast Iron
Number of Grooves      :      2
Outside Diameter      :      7.9 in
Pitch Diameter      :      7-1/2 in
Suitable For Use With      :      C Cross Section V-Belt
Type      :      Heavy Duty Type D-1 Solid
  • Precision machined from gray cast iron
  • Statically balanced
  • Cast iron sheaves should not exceed 6500 fpm rim speed
  • Special or dynamic balancing should be considered when speeds exceed 5000 fpm
  • Accepts QD® style bushings
