IDC Select® IDC 2BK110-1-7/16 IDC2BK1101 7/16
  1. pin-int

IDC Select® IDC 2BK110-1-7/16 IDC2BK1101 7/16

IDC Select® IDC 2BK110-1-7/16 Light Duty Type 3 Sheave With 3/8 x 3/16 in Keyway and Setscrew, 1-7/16 in Bored to Size Bore, 10-3/4 in OD, 2 Grooves, 10.4 in Dia Pitch, 1-3/4 in W Face

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDC2BK1101 7/16
  • MPN: IDC 2BK110-1-7/16
  • UPC: 887412016047
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

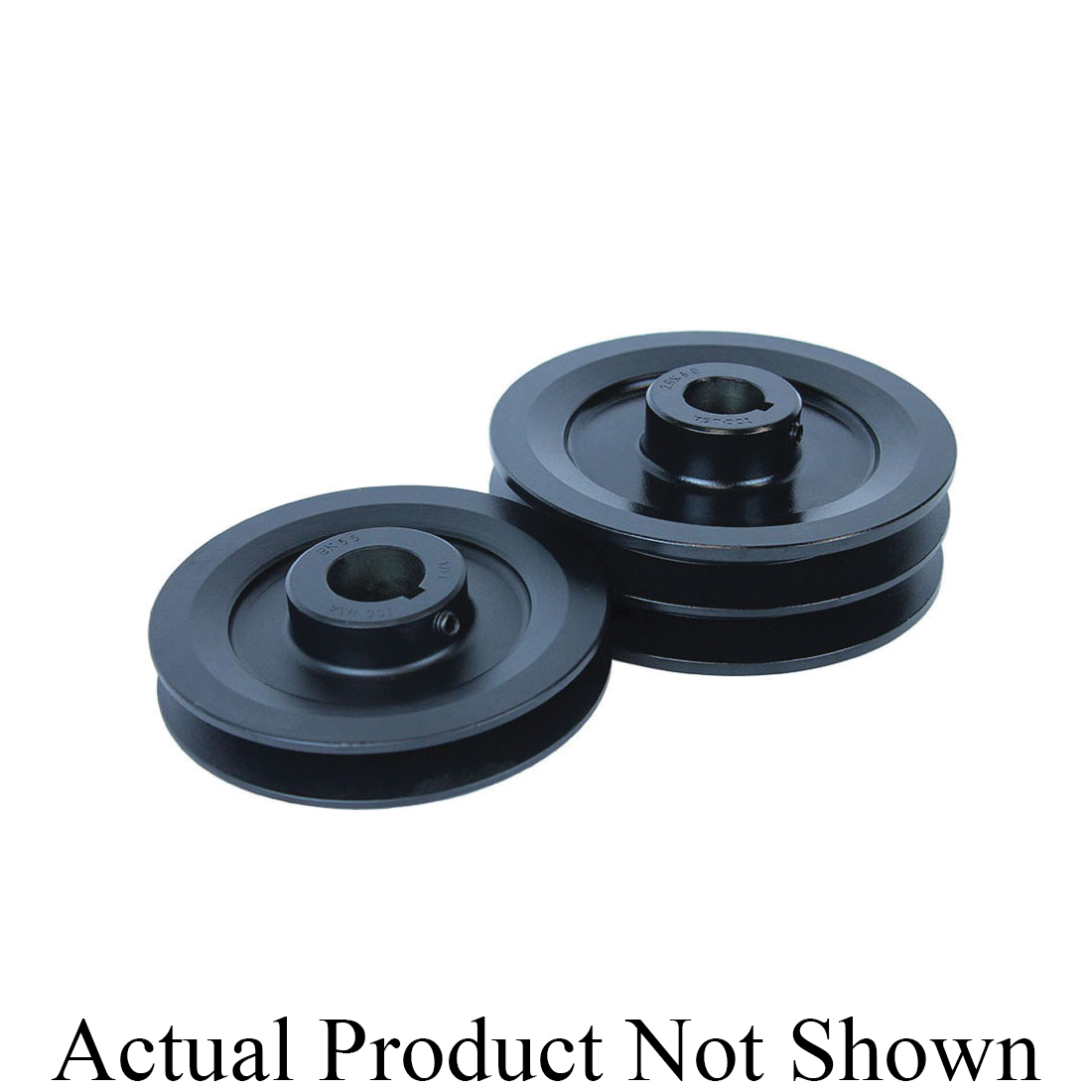

IDC Select® light duty bored-to-size sheaves are available in single and two groove designs for A-B and 3L-4L-5L belts. Each unit is supplied with a keyway and a set screw over the keyway. They are precision machined from 25 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.

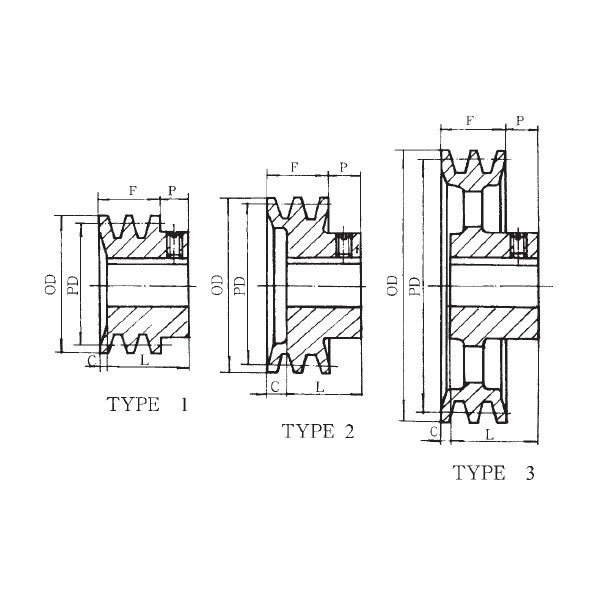

IDC Select® Sheave, Light Duty Type 3, Bored to Size Bore, 1-7/16 in Bore Dia, 10-3/4 in Outside Dia, 10.4 in, 2 Grooves, 1-3/4 in Face Width, 11/32 in Hub Projection, For Use With: 4L/A and 5L/B Cross Section V-Belts, Class 25 Cast Iron, Baked Enamel

Bore Diameter      :      1-7/16 in
Bore Type      :      Bored to Size
Face Width      :      1-3/4 in
Finish      :      Baked Enamel
Hub Projection      :      11/32 in
Material      :      Class 25 Cast Iron
Number of Grooves      :      2
Outside Diameter      :      10-3/4 in
Pitch Diameter      :      10.4 in
Suitable For Use With      :      4L/A and 5L/B Cross Section V-Belts
Type      :      Light Duty Type 3
  • Precision machined from gray cast iron
  • Statically balanced
  • Cast iron sheaves should not exceed 6500 fpm rim speed
  • Special or dynamic balancing should be considered when speeds exceed 5000 fpm
  • 10 in Dia pitch 4L/10.4 in Dia pitch 5L(B)
  • pdfTechnical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDC_SELECT_IDC_1VL025_1_2_Technical_Bulletin.pdf
