IDC Select® IDC 2AK021-5/8 IDC2AK0215/8
  1. pin-int

IDC Select® IDC 2AK021-5/8 IDC2AK0215/8

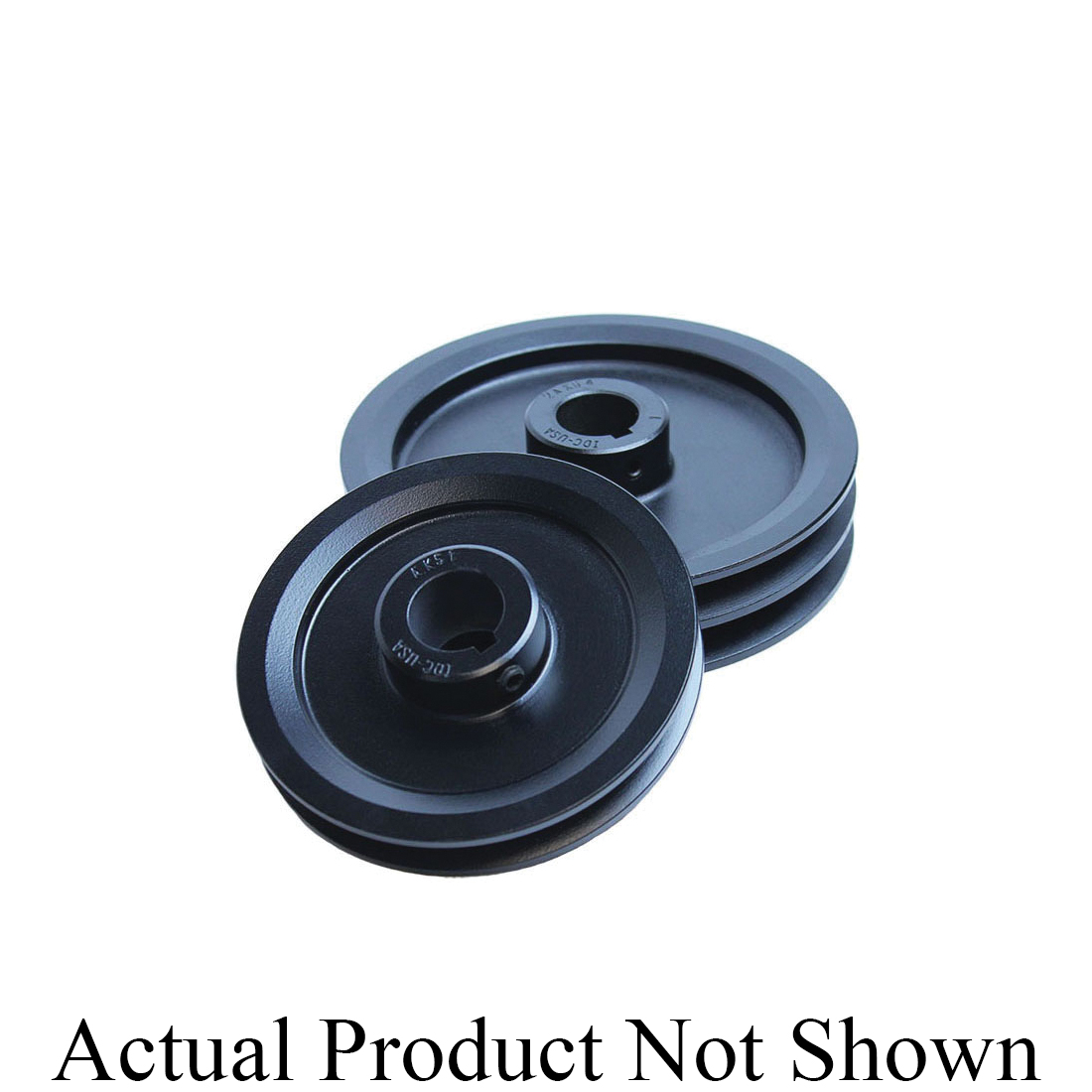

IDC Select® IDC 2AK021-5/8 Light Duty Type 1 Sheave With 3/16 x 3/32 in Keyway and Setscrew, 5/8 in Bored to Size Bore, 2.15 in OD, 2 Grooves, 1.9 in Dia Pitch, 1-3/8 in W Face

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDC2AK0215/8
  • MPN: IDC 2AK021-5/8
  • UPC: 887412011615
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

IDC Select® light duty bored-to-size sheaves are available in single and two groove designs for A-B and 3L-4L-5L belts. Each unit is supplied with a keyway and a set screw over the keyway. They are precision machined from 25 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.

IDC Select® Sheave, Light Duty Type 1, Bored to Size Bore, 5/8 in Bore, 2.15 in OD, 1.9 in Pitch Diameter, 2 Grooves, 1-3/8 in Face Width, 15/32 in Hub Projection, For Use With: 3L and 4L/A Cross Section V-Belts, Cast Iron, Baked Enamel

Bore Diameter      :      5/8 in
Bore Type      :      Bored to Size
Face Width      :      1-3/8 in
Finish      :      Baked Enamel
Hub Projection      :      15/32 in
Material      :      Cast Iron
Number of Grooves      :      2
Outside Diameter      :      2.15 in
Pitch Diameter      :      1.9 in
Suitable For Use With      :      3L and 4L/A Cross Section V-Belts

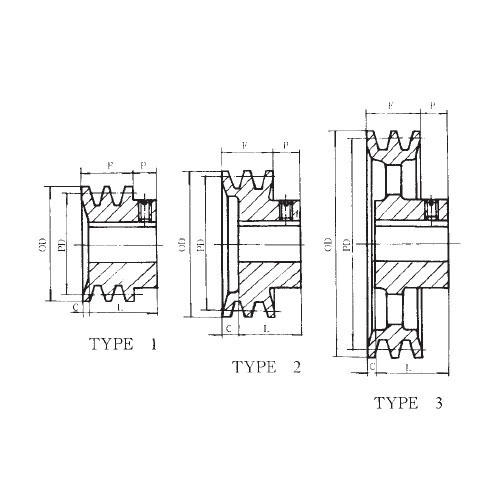

Type      :      Light Duty Type 1
  • Precision machined from gray cast iron
  • Statically balanced
  • Cast iron sheaves should not exceed 6500 fpm rim speed
  • Special or dynamic balancing should be considered when speeds exceed 5000 fpm
  • 1.56 in Dia pitch 3L/1.9 in Dia pitch 4L(A)
