IDC Select® IDC 1VP044-1 IDC1VP0441
  1. pin-int

IDC Select® IDC 1VP044-1 IDC1VP0441

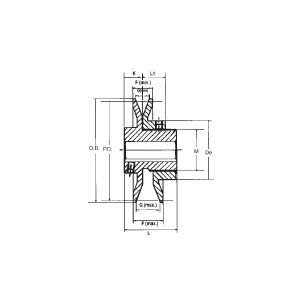

IDC Select® IDC 1VP044-1 Heavy Duty Type 1 Variable Pitch Sheave With Keyway and Setscrew, 1 in Bore, 4.15 in OD, 1 Grooves, 4.1 in Dia Pitch, 1.06 in W Face

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDC1VP0441
  • MPN: IDC 1VP044-1
  • UPC: 887412016801
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

IDC Select® variable pitch sheaves 1VL and 1 and 2VP designs are precision machined from 30 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.

IDC Select® Variable Pitch Sheave, Heavy Duty Type 1, 1 in Bore, 4.15 in OD, 4.1 in Pitch Diameter, 1 Grooves, 1.06 in Face Width, 1.88 in Overall Length, For Use With: 3L, 4L/A and 5L/B Cross Section V-Belts, Cast Iron, Baked Enamel

Bore Diameter      :      1 in
Face Width      :      1.06 in
Finish      :      Baked Enamel
Material      :      Cast Iron
Number of Grooves      :      1
Outside Diameter      :      4.15 in
Overall Length      :      1.88 in
Pitch Diameter      :      4.1 in
Suitable For Use With      :      3L, 4L/A and 5L/B Cross Section V-Belts
Type      :      Heavy Duty Type 1
  • Item Features 01=Precision machined from gray cast iron
  • Item Features 02=Statically balanced
  • Item Features 03=Cast iron sheaves should not exceed 6500 fpm rim speed
  • Item Features 04=Special or dynamic balancing should be considered when speeds exceed 5000 fpm
  • Item Features 05=2.7 to 3.5 in Dia pitch 3L/2.8 to 3.8 in Dia pitch 4L(A)/3.1 to 4.1 in Dia pitch 5L(B)
  • Item Features 06=0.69 to 1.06 in W face
