IDC Select® IDC 1VL030-5/8 IDC1VL0305/8

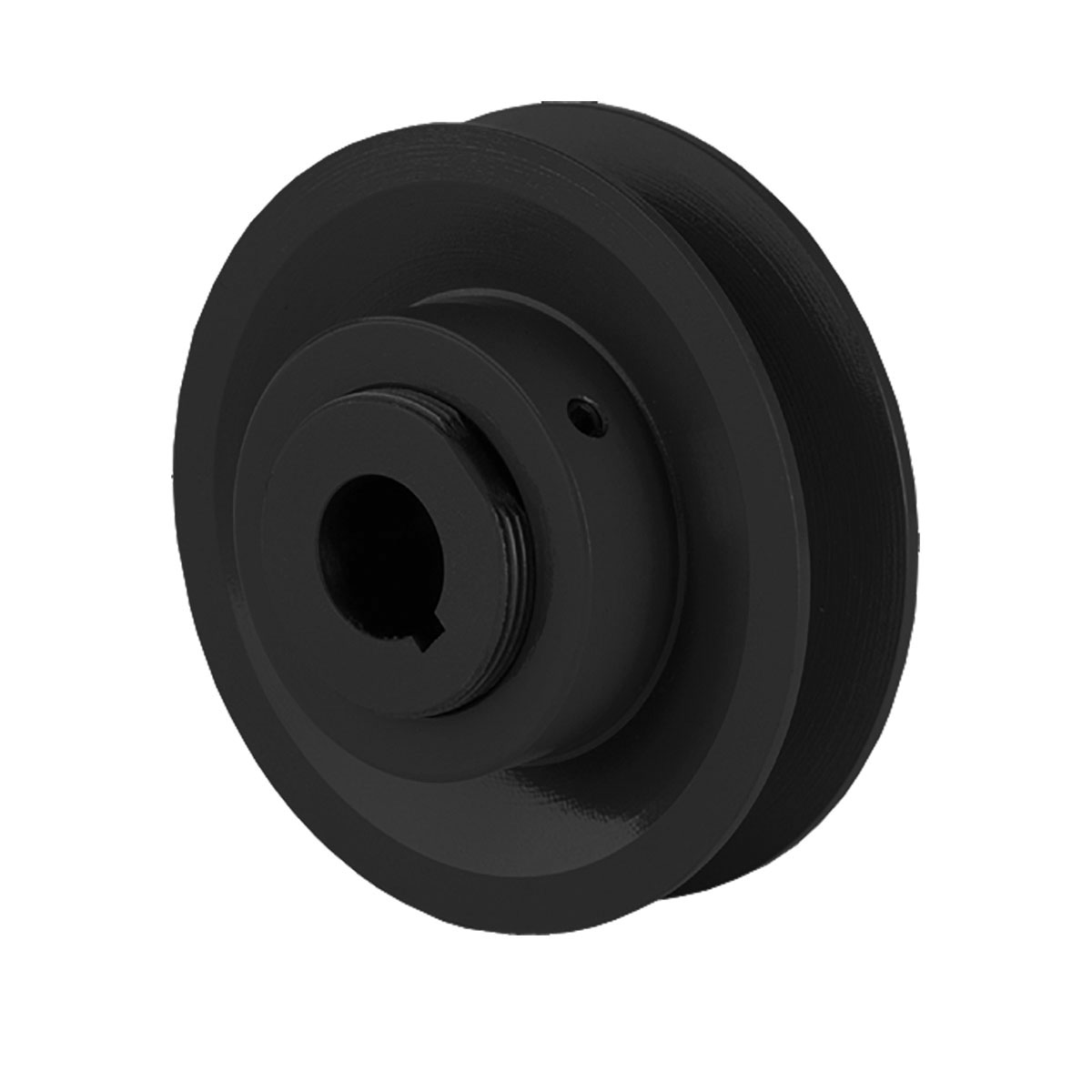

IDC Select® IDC 1VL030-5/8 Heavy Duty FHP Variable Pitch Sheave With Keyway and Setscrew, 5/8 in Bored to Size Bore, 2.87 in OD, 1 Grooves, 2.7 in Dia Pitch, 25/32 in W Face

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDC1VL0305/8
  • MPN: IDC 1VL030-5/8
  • UPC: 887412016467
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

IDC Select® variable pitch sheaves 1VL and 1 and 2VP designs are precision machined from 30 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.

IDC Select® FHP Variable Pitch Sheave, Heavy Duty, Bored to Size Bore, 5/8 in Bore, 2.87 in OD, 2.7 in Pitch Diameter, 1 Grooves, 25/32 in Face Width, 1-1/2 in Overall Length, For Use With: 3L Cross Section V-Belt, Cast Iron, Baked Enamel

Bore Diameter      :      5/8 in
Bore Type      :      Bored to Size
Face Width      :      25/32 in
Finish      :      Baked Enamel
Material      :      Cast Iron
Number of Grooves      :      1
Outside Diameter      :      2.87 in
Overall Length      :      1-1/2 in
Pitch Diameter      :      2.7 in
Suitable For Use With      :      3L Cross Section V-Belt
Type      :      Heavy Duty
  • Precision machined from gray cast iron
  • Statically balanced
  • Cast iron sheaves should not exceed 6500 fpm rim speed
  • Special or dynamic balancing should be considered when speeds exceed 5000 fpm
  • 1.8 to 2.7 in Dia pitch 3L
  • 17/32 to 25/32 in W face
  • pdfTechnical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDC_SELECT_IDC_1VL025_1_2_Technical_Bulletin.pdf
