IDC Select® IDC 1310-15/16 IDC131015/16
  1. pin-int

IDC Select® IDC 1310-15/16 IDC131015/16

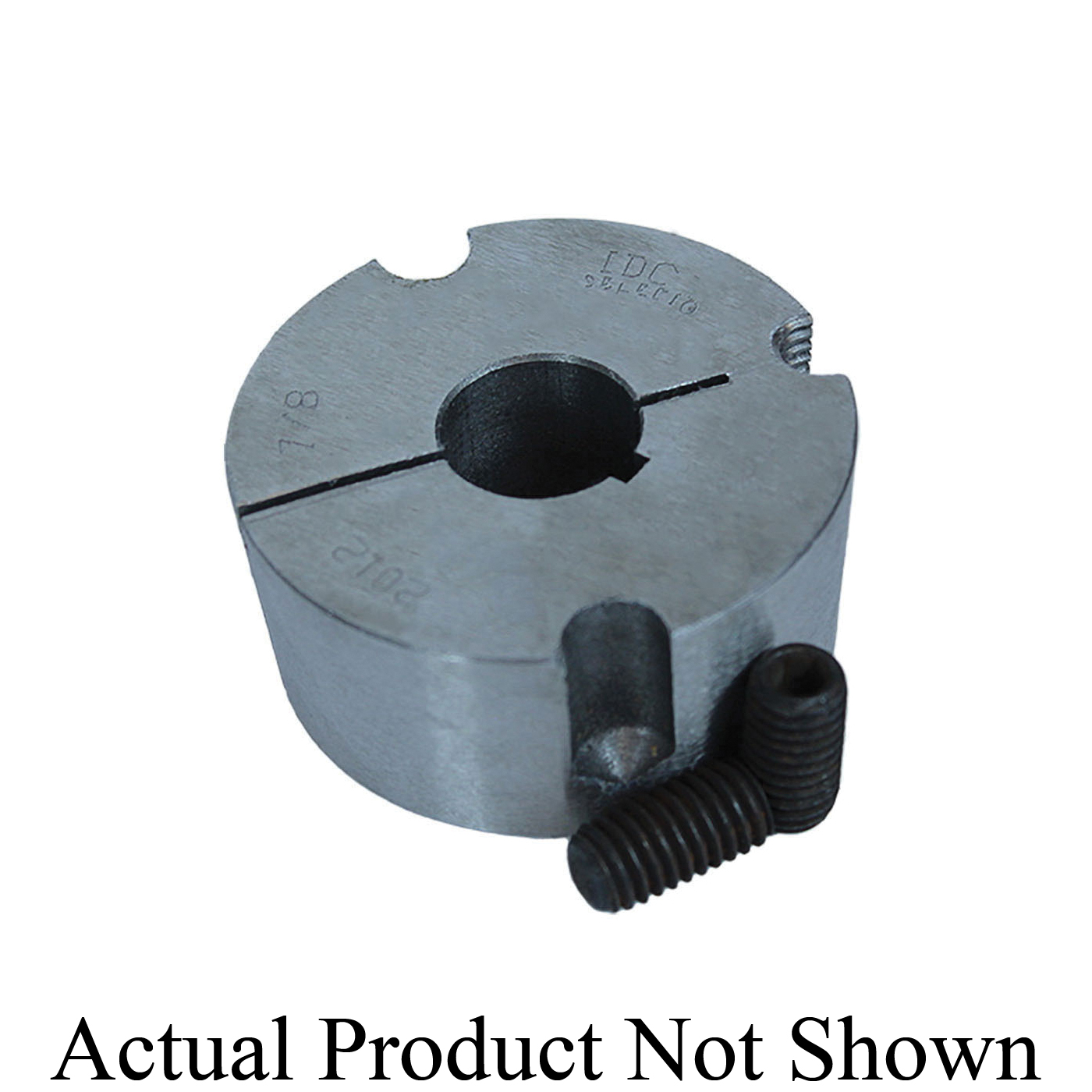

IDC Select® IDC 1310-15/16 Finished Bore Taper-Lock® Bushing, 15/16 in Dia Bore, 2 in Dia Barrel, 1 in OAL, Nodular Graphite Cast Iron

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDC131015/16
  • MPN: IDC 1310-15/16
  • UPC: 887412068091
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

IDC Select® bushings are available in H, QD®, Taper-Lock®, and Split Taper™ designs and are available in inch and metric sizes. They are stocked in popular finished bore sizes. All IDC Select® bushings are fully interchangeable with industry standard design.

IDC Select® Taper-Lock® Bushing, Finished Bore, 15/16 in Bore Dia, 2 in Barrel Dia, 8 deg Taper, 1-7/8 in Bolt Circle, 3/8-16 UNC Screw, 176 in-lb, 1 in Overall Length, 1/4 x 1/8 in Keyway, Nodular Graphite Cast Iron

Barrel Diameter      :      2 in
Bolt Circle Diameter      :      1-7/8 in
Bore Diameter      :      15/16 in
Keyway Size      :      1/4 x 1/8 in
Material      :      Nodular Graphite Cast Iron
Overall Length      :      1 in
Screw Size      :      3/8-16 UNC
Taper      :      8 deg
Torque Rating      :      176 in-lb
Type      :      Finished Bore
  • Flush mount - clean and compact
  • Easy installation and dismount
  • 8 deg taper - fits equivalent to shrink fit
  • Globally accepted
  • Keystock provided with shallow key sizes
  • 1310 Taper-Lock® bushing
