IDC Select® IDC 1/3V0280JA IDC1/3V0280JA
  1. pin-int

IDC Select® IDC 1/3V0280JA IDC1/3V0280JA

IDC Select® IDC 1/3V0280JA Heavy Duty Type D-1 Solid Single Groove Sheave, QD® Bore, 2.8 in OD, 2-3/4 in Dia Pitch, 11/16 in W Face

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDC1/3V0280JA
  • MPN: IDC 1/3V0280JA
  • UPC: 887412000046
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

IDC Select® classical A/B combination, C and D sheaves, and narrow 3V, 5V, and 8V sheaves are available in QD® bushing designs. They are precision machined from 30 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.

IDC Select® Single Groove Sheave, Heavy Duty Type D-1 Solid, QD® Bore, 2.8 in OD, 2-3/4 in Pitch Diameter, 11/16 in Face Width, JA Bushing, For Use With: 3V-Cross Section V-Belts, Cast Iron, Baked Enamel

Bore Type      :      QD®
Bushing Type      :      JA
Face Width      :      11/16 in
Finish      :      Baked Enamel
Material      :      Cast Iron
Outside Diameter      :      2.8 in
Pitch Diameter      :      2-3/4 in
Suitable For Use With      :      3V-Cross Section V-Belts

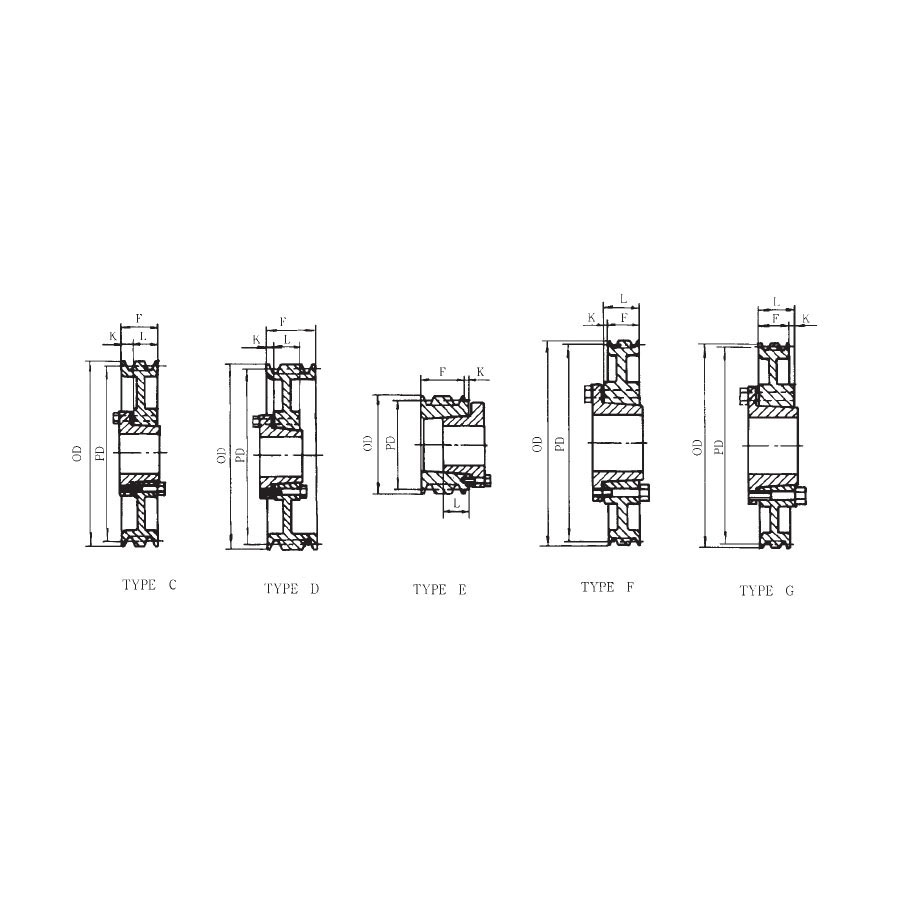

Type      :      Heavy Duty Type D-1 Solid
  • Precision machined from gray cast iron
  • Statically balanced
  • Cast iron sheaves should not exceed 6500 fpm rim speed
  • Special or dynamic balancing should be considered when speeds exceed 5000 fpm
  • Accepts QD® style bushings
  • pdfTechnical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDC_SELECT_IDC_1VL025_1_2_Technical_Bulletin.pdf
