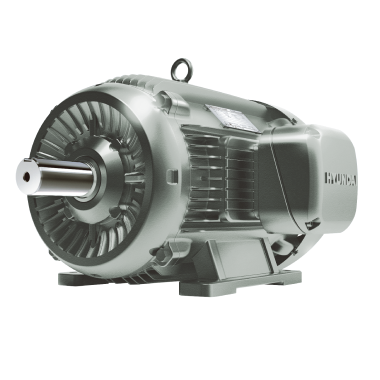

IEEE841 Motor NEMA Premium Efficiency 20HP 3600RPM 256T 460V 60Hz TEFC Foot mounted, 2 Poles
| Enclosure Type | : | TEFC |
| Frame | : | 256T |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 20 Hp |
| Mounting Type | : | Foot mounted |
| Speed | : | 3600 Rpm |
| Voltage Rating | : | 460 VAC |
- Class I/II Division 2 Groups A,B,C,D & E,F,G
- Temperature Rise B at 40? Ambient temp
- Direct-on-line & Inverter duty
- Cast Iron construction
- Fully rotatable at 90 increments
- ProTech seal (Non-contact Labyrinth seal)
- Meets IEEE841-2021 Standard
