HKK Chain RC200C1A HKK200C-10
  1. pin-int

HKK Chain RC200C1A HKK200C-10

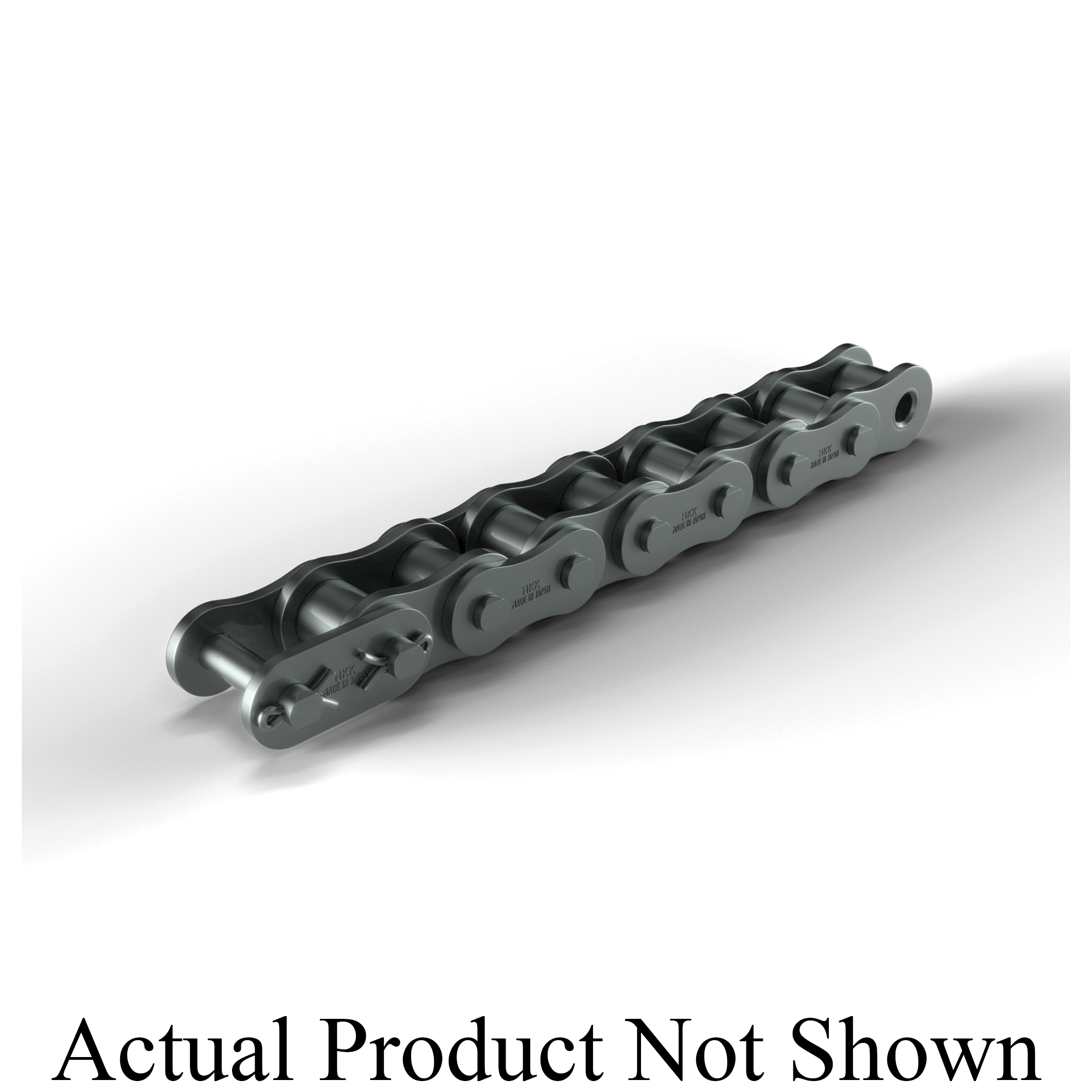

HKK Chain RC200C1A Cottered Standard Roller Chain, 10 ft OAL, 2-1/2 in Pitch, 1.562 in Dia x 1-1/2 in W Roller, Alloy Steel

  • Manufacturer: HKK Chain Corporation
  • Brand Name: HKK Chain
  • Part Number: HKK200C-10
  • MPN: RC200C1A
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

HKK Chain Superior Capacity Plus® is a patented process which increases the maximum allowable load up to 30% over standard chains. This increased strength, combined with our standard solid bushings and rollers make HKK Chain one of the highest quality, longest lasting chains available.

HKK Chain Roller Chain, Cottered Standard, 2-1/2 in Pitch, 0.781 in Pin Dia, 1.562 in Roller Dia, 1-1/2 in Roller Width, 2.354 in Plate Height, 0.312 in Plate Thickness, 48 Links/10 ft, 1 Strand, 10 ft Overall Length, Alloy Steel

Material      :      Alloy Steel
Number of Links      :      48 Links/10 ft
Number of Strands      :      1
Overall Length      :      10 ft
Pin Diameter      :      0.781 in
Pitch      :      2-1/2 in
Plate Height      :      2.354 in
Plate Thickness      :      0.312 in
Roller Diameter      :      1.562 in
Roller Width      :      1-1/2 in
Type      :      Cottered Standard
  • One HKK Chain RC200CCL1 full strength standard 1-Pin Cottered Connecting link is supplied with each 10 ft of chain
  • RC200CHL1 offset link (half link), RC200-RL roller link (inner link) sold separately
  • Chain size 200
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/HKK_Chain_1002C10_Specification_Sheet.pdf
