HKK Chain RC180C2A HKK180-2C-10
  1. pin-int

HKK Chain RC180C2A HKK180-2C-10

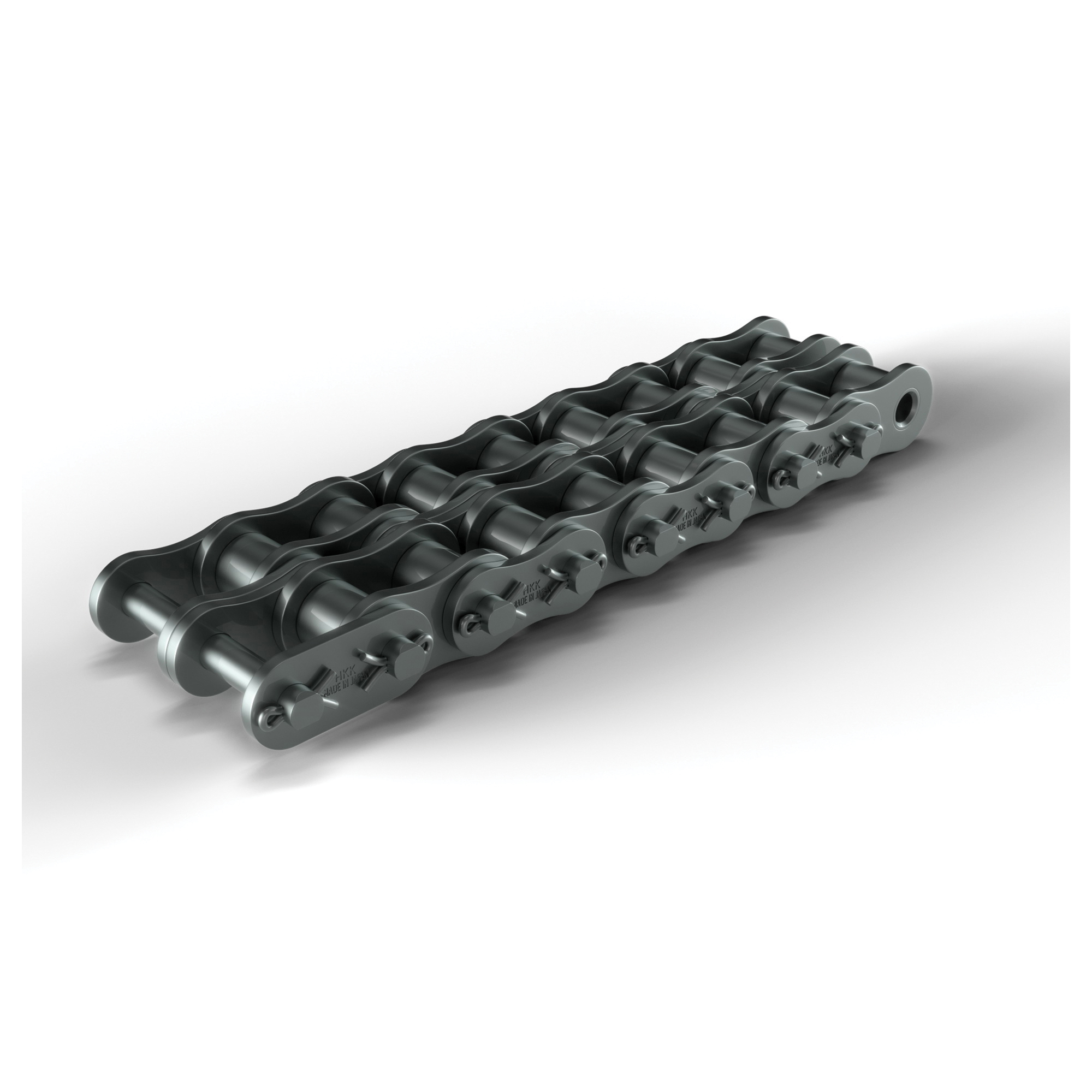

HKK Chain RC180C2A Cottered Standard Roller Chain, 10 ft OAL, 2-1/4 in Pitch, 1.406 in Dia x 1-13/32 in W Roller, Alloy Steel

  • Manufacturer: HKK Chain Corporation
  • Brand Name: HKK Chain
  • Part Number: HKK180-2C-10
  • MPN: RC180C2A
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

HKK Chain Superior Capacity Plus® is a patented process which increases the maximum allowable load of the chain. This increased strength, combined with our standard solid bushings and rollers make HKK Chain one of the highest quality, longest lasting chains available.

HKK Chain Roller Chain, Cottered Standard, 2-1/4 in Pitch, 0.687 in Pin Dia, 1.406 in Roller Dia, 1-13/32 in Roller Width, 2.067 in Plate Height, 0.283 in Plate Thickness, 2 Strands, 10 ft Overall Length, Alloy Steel

Material      :      Alloy Steel
Number of Strands      :      2
Overall Length      :      10 ft
Pin Diameter      :      0.687 in
Pitch      :      2-1/4 in
Plate Height      :      2.067 in
Plate Thickness      :      0.283 in
Roller Diameter      :      1.406 in
Roller Width      :      1-13/32 in
Type      :      Cottered Standard
  • One HKK Chain RC180CCL2 full strength cottered connecting link is supplied with each 10 ft of chain
  • RC180CHL2 offset link (half link), RC180-RL roller link (inner link) sold separately, two pieces required per pitch
  • Chain size 180-2
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/HKK_Chain_1002C10_Specification_Sheet.pdf
