HKK Chain RC140C1A HKK140C-10
  1. pin-int

HKK Chain RC140C1A HKK140C-10

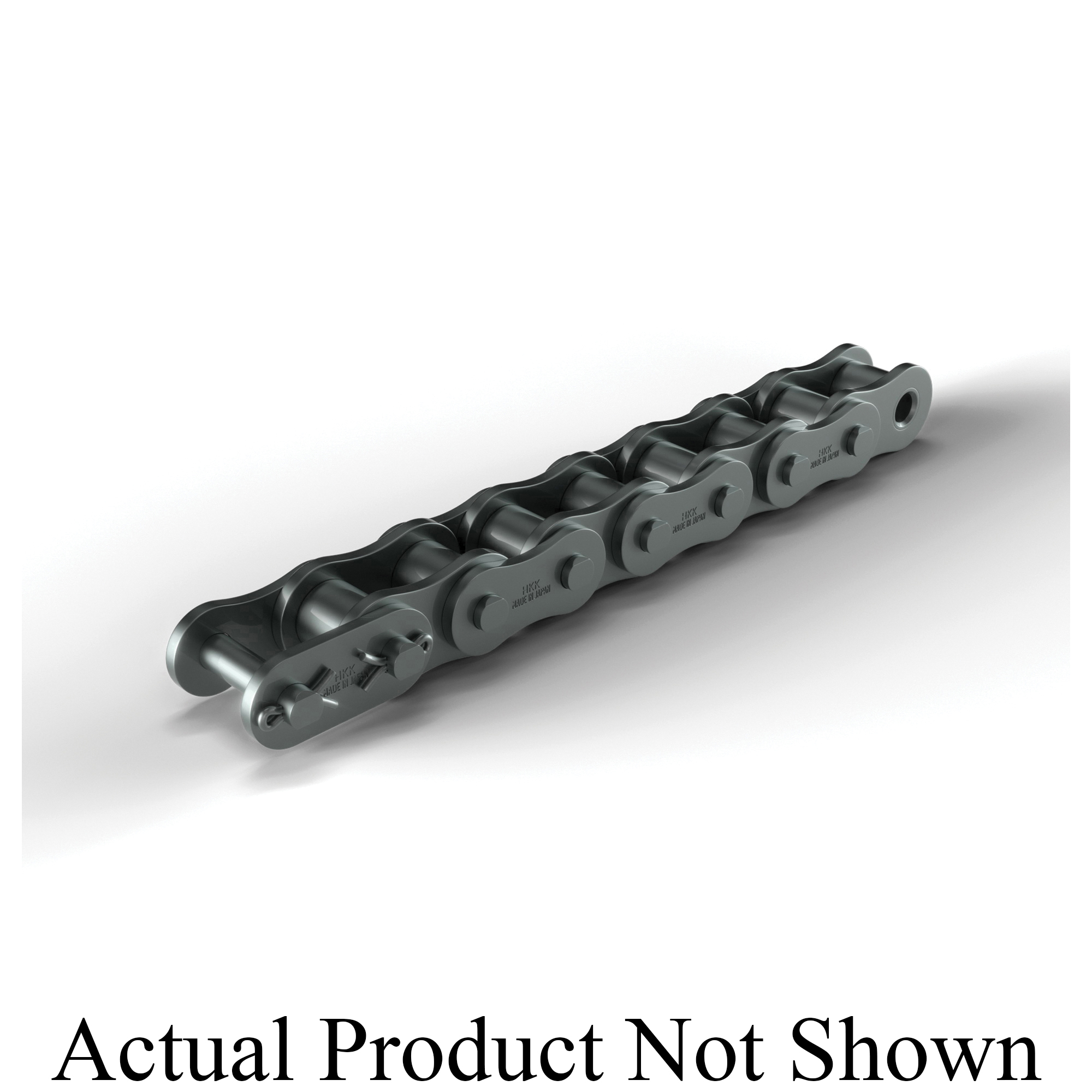

HKK Chain RC140C1A Cottered Standard Roller Chain, 10 ft OAL, 1-3/4 in Pitch, 1 in Dia x 1 in W Roller, Alloy Steel

  • Manufacturer: HKK Chain Corporation
  • Brand Name: HKK Chain
  • Part Number: HKK140C-10
  • MPN: RC140C1A
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

HKK Chain Superior Capacity Plus® is a patented process which increases the maximum allowable load up to 30% over standard chains. This increased strength, combined with our standard cold forged solid bushings and rollers make HKK Chain one of the highest quality, longest lasting chains available.

HKK Chain Roller Chain, Cottered Standard, 1-3/4 in Pitch, 1/2 in Pin Dia, 1 in Roller Dia, 1 in Roller Width, 1.61 in Plate Height, 0.219 in Plate Thickness, 68 Links/10 ft, 1 Strand, 10 ft Overall Length, Alloy Steel

Material      :      Alloy Steel
Number of Links      :      68 Links/10 ft
Number of Strands      :      1
Overall Length      :      10 ft
Pin Diameter      :      1/2 in
Pitch      :      1-3/4 in
Plate Height      :      1.61 in
Plate Thickness      :      0.219 in
Roller Diameter      :      1 in
Roller Width      :      1 in
Type      :      Cottered Standard
  • One HKK Chain RC140CCL1 full strength standard cottered connecting link is supplied with each 10 ft of chain
  • RC140CHL1 offset link (half link), RC140-RL roller link (inner link) sold separately
  • Chain size 140
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/HKK_Chain_1002C10_Specification_Sheet.pdf
