HKK Chain RC080C1A HKK80C-10
  1. pin-int

HKK Chain RC080C1A HKK80C-10

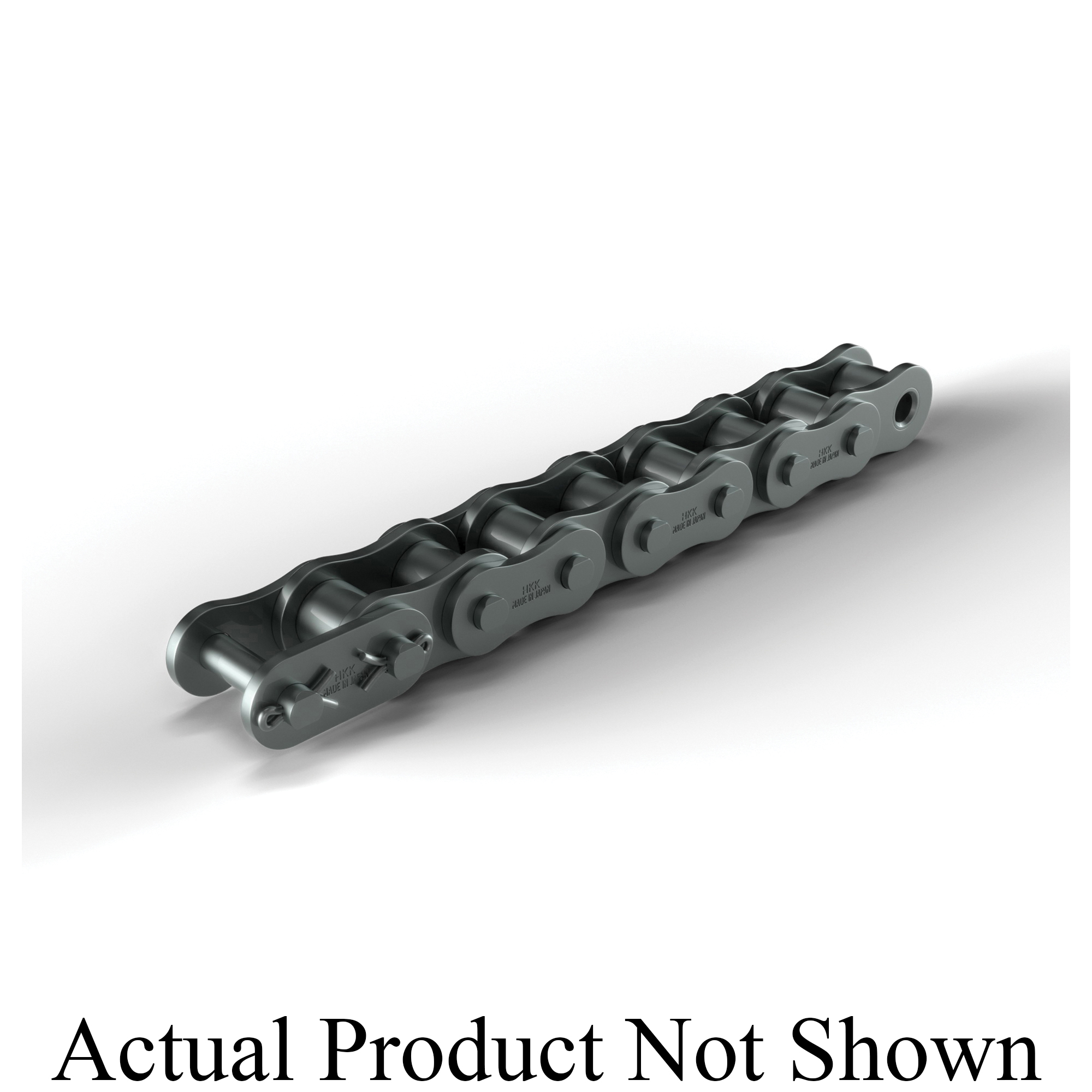

HKK Chain RC080C1A Cottered Standard Roller Chain, 10 ft OAL, 1 in Pitch, 5/8 in Dia x 5/8 in W Roller, Alloy Steel

  • Manufacturer: HKK Chain Corporation
  • Brand Name: HKK Chain
  • Part Number: HKK80C-10
  • MPN: RC080C1A
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

HKK Chain Superior Capacity Plus® is a patented process which increases the maximum allowable load up to 30% over standard chains. This increased strength, combined with our standard cold forged solid bushings and rollers make HKK Chain one of the highest quality, longest lasting chains available.

HKK Chain Roller Chain, Cottered Standard, 1 in Pitch, 0.312 in Pin Dia, 5/8 in Roller Dia, 5/8 in Roller Width, 0.921 in Plate Height, 1/8 in Plate Thickness, 120 Links/10 ft, 1 Strand, 110 ft Overall Length, Alloy Steel

Material      :      Alloy Steel
Number of Links      :      120 Links/10 ft
Number of Strands      :      1
Overall Length      :      10 ft
Pin Diameter      :      0.312 in
Pitch      :      1 in
Plate Height      :      0.921 in
Plate Thickness      :      1/8 in
Roller Diameter      :      5/8 in
Roller Width      :      5/8 in
Type      :      Cottered Standard
  • One HKK Chain RC080CCL1 full strength standard cottered connecting link is supplied with each 10 ft of chain
  • RC080CHL1 offset link (half link), RC080-RL roller link (inner link) sold separately
  • Chain size 80 Series
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/HKK_Chain_1002C10_Specification_Sheet.pdf
