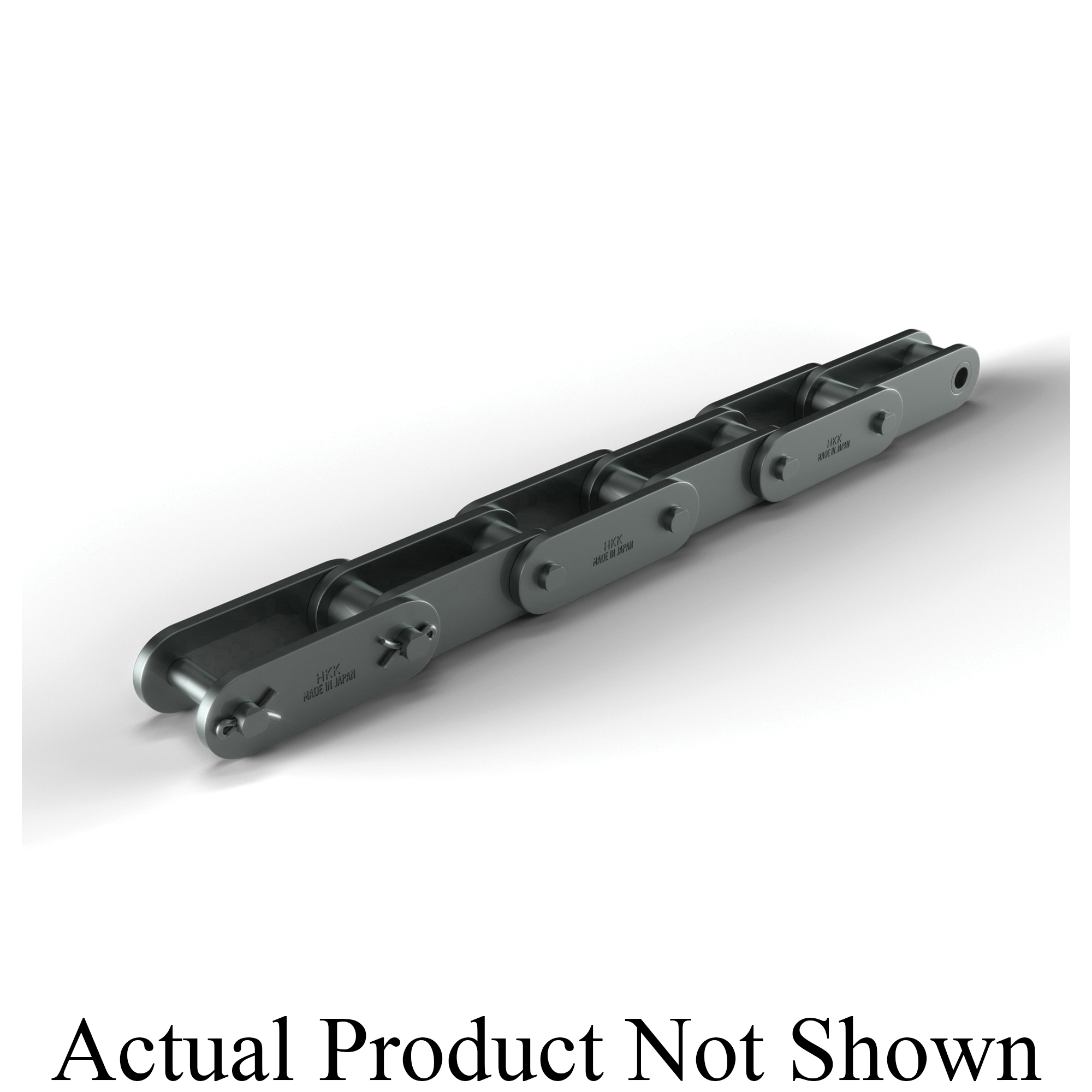

HKK Chain DC060R1A HKKC2060HR-10

HKK Chain Superior Capacity Plus® double pitch roller chains are similar to HKK Chain standard roller chain except the pitch is twice that of standard chain. Ideally suited for conveying application with slow to moderate speeds and long shaft centers. Numerous attachments are available to aid in the conveying process. HKK Chain double pitch chains go through the same patented Superior Capacity Plus® process as our standard chain. Superior Capacity Plus® significantly increases the fatigue strength. This increased strength, combined with our standard cold forged solid bushings and solid rollers make HKK Chain one of the highest quality, longest lasting chains available. The letter "H" following the chain size signifies the side plates thickness is of the Heavy Series.

HKK Chain Conveyor Roller Chain, Double Pitch Riveted Standard, Series: Heavy Series, 1-1/2 in Pitch, 0.234 in Pin Dia, 0.469 in Roller Dia, 1/2 in Roller Width, 0.67 in Plate Height, 1/8 in Plate Thickness, 10 ft Overall Length, Alloy Steel

• One DC060CCL1 standard cottered connecting link is supplied with each 10 ft of chain
• DC060CHL1 offset link (half link), DC060-RL roller link (inner link), DC060SCL1 spring clip-type connecting link sold separately
• Chain size C2060H
