HKK Chain DC040R1A HKKC2040R-10
  1. pin-int

HKK Chain DC040R1A HKKC2040R-10

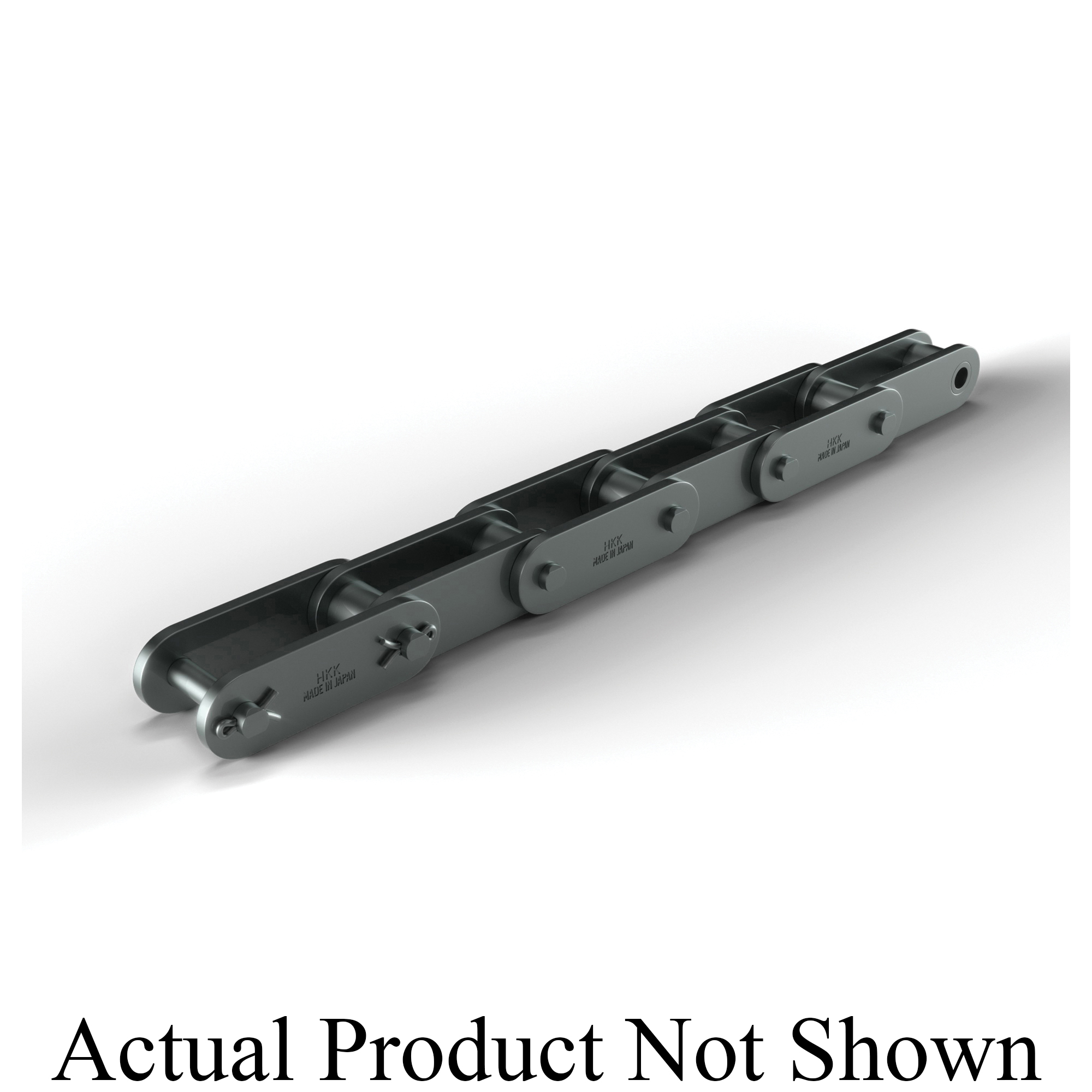

HKK Chain DC040R1A Double Pitch Riveted Standard Conveyor Roller Chain, 10 ft OAL, 1 in Pitch, 0.312 in Dia x 5/16 in W Roller, 0.06 in THK Plate, Alloy Steel

  • Manufacturer: HKK Chain Corporation
  • Brand Name: HKK Chain
  • Part Number: HKKC2040R-10
  • MPN: DC040R1A
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

HKK Chain Superior Capacity Plus® double pitch roller chains are similar to HKK Chain standard roller chain except the pitch is twice that of standard chain. Ideally suited for conveying application with slow to moderate speeds and long shaft centers. Numerous attachments are available to aid in the conveying process. HKK Chain double pitch chains go through the same patented Superior Capacity Plus® process as our standard chain. Superior Capacity Plus® significantly increases the fatigue strength. This increased strength, combined with our standard cold forged solid bushings and solid rollers make HKK Chain one of the highest quality, longest lasting chains available.

HKK Chain Conveyor Roller Chain, Double Pitch Riveted Standard, 1 in Pitch, 0.156 in Pin Dia, 0.312 in Roller Dia, 5/16 in Roller Width, 0.45 in Plate Height, 0.06 in Plate Thickness, 10 ft Overall Length, Alloy Steel

Material      :      Alloy Steel
Overall Length      :      10 ft
Pin Diameter      :      0.156 in
Pitch      :      1 in
Plate Height      :      0.45 in
Plate Thickness      :      0.06 in
Roller Diameter      :      0.312 in
Roller Width      :      5/16 in
Tensile Strength      :      4300 lb
Type      :      Double Pitch Riveted Standard
  • One DC040CCL1 standard cottered connecting link is supplied with each 10 ft of chain
  • DC040CHL1 offset link (half link), DC040-RL roller link (inner link), DC040SCL1 spring clip-type connecting link sold separately
  • Chain size C2040
