HKK Chain BS16BR1A MAXBS16B-10

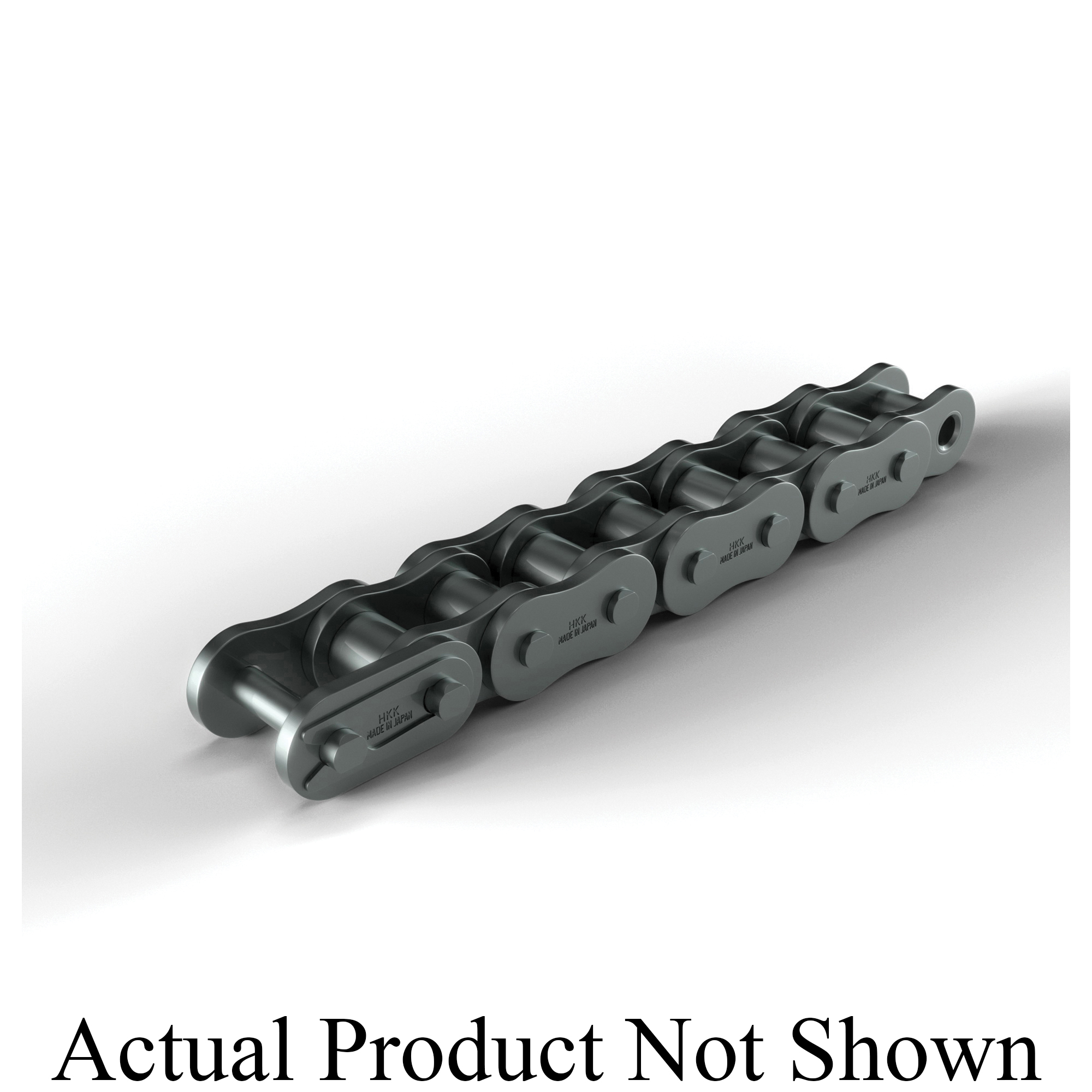

HKK Chain BS16BR1A British Standard Riveted Roller Chain, 10 ft OAL, 1 in Pitch, 5/8 in Dia x 0.67 in W Roller, Alloy Steel
- Manufacturer: HKK Chain Corporation
- Brand Name: HKK Chain
- Part Number: MAXBS16B-10
- MPN: BS16BR1A
- UPC: 821002007664
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Superior Capacity Plus® is a patented process which significantly increases the maximum allowable load up to 30% over standard chains. This increased strength, combined with our standard cold forged solid bushings and solid rollers make HKK Chain British Standard roller chain one of the highest quality, longest lasting chains available.
HKK Chain Roller Chain, British Standard Riveted, 1 in Pitch, 0.325 in Pin Dia, 5/8 in Roller Dia, 0.67 in Roller Width, 0.792 in Plate Height, 0.154 in Plate Thickness, 1 Strand, 10 ft Overall Length, Alloy Steel
| Material | : | Alloy Steel |
| Number of Strands | : | 1 |
| Overall Length | : | 10 ft |
| Pin Diameter | : | 0.325 in |
| Pitch | : | 1 in |
| Plate Height | : | 0.792 in |
| Plate Thickness | : | 0.154 in |
| Roller Diameter | : | 5/8 in |
| Roller Width | : | 0.67 in |
| Type | : | British Standard Riveted |
- One BS16BSCL1 standard spring clip connecting link is supplied with each 10 ft of chain
- BS16BCHL1 offset link (half link), BS16B-RL roller link (inner link) sold separately
- Chain size 16B
