Heritage™ H43760 SGL202-2
Heritage™ H43760 Straight H43760, 1/8-27 Male NPTF x 1/4-18 Female NPTF Thread, 1.19 in OAL, Clear Zinc Plated, Steel
- Manufacturer: G. L. Huyett
- Brand Name: Heritage™
- Part Number: SGL202-2
- MPN: H43760
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Adapters are often implemented in applications where a thread size needs to be changed to accompany a mating part. This is generally done to accommodate common thread sizes, retrofit aftermarket parts to an existing assembly or allow for the tapping of larger threads to replace a damaged part.

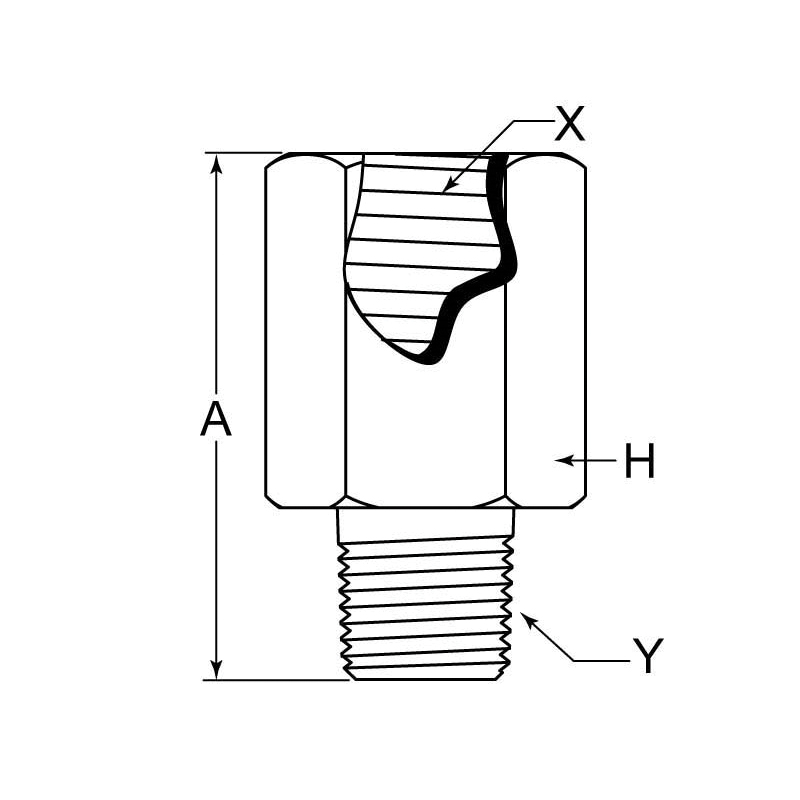

Heritage™ Elbow Adapter, Straight, 1/8-27 Male NPTF x 1/4-18 Female NPTF Thread, 1.19 in Overall Length, 5/8 in Hex, Clear Zinc Plated, Steel
California residents see Prop 65 WARNINGS
| Finish | : | Clear Zinc Plated |
| Hex Size | : | 5/8 in |
| Material | : | Steel |
| Overall Length | : | 1.19 in |
| Thread Size | : | 1/8-27 Male NPTF x 1/4-18 Female NPTF |
| Type | : | Straight |
- FNPT taper thread
Specification Sheet
