Heritage™ H2105Z3 ITW6417
Heritage™ H2105Z3 90 deg H2105Z3, M8x1 Thread, 18 mm OAL, Clear Trivalent Zinc Plated, Steel, 5.5 mm L Shank
- Manufacturer: G. L. Huyett
- Brand Name: Heritage™
- Part Number: ITW6417
- MPN: H2105Z3
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
8 mm threads are commonly used in standard-duty applications, such as on cars and light trucks. Many thread sizes are available in extra-fine, fine, coarse and extra-coarse thread.

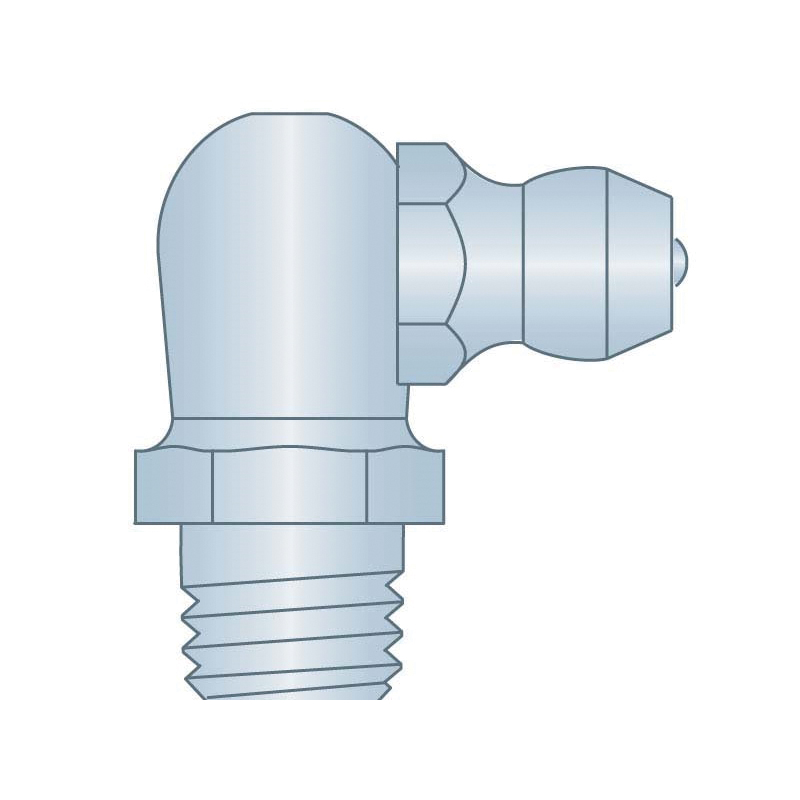

Heritage™ Zerk Grease Fitting, 90 deg, M8x1 Thread, 18 mm Overall Length, 5.5 mm Shank Length, 9 mm Hex, Clear Trivalent Zinc Plated, Steel
California residents see Prop 65 WARNINGS
| Finish | : | Clear Trivalent Zinc Plated |
| Hex Size | : | 9 mm |
| Material | : | Steel |
| Overall Length | : | 18 mm |
| Shank Length | : | 5.5 mm |
| Thread Size | : | M8x1 |
| Type | : | 90 deg |
- Standard shank
- Metric taper thread
Specification Sheet
