Heritage™ H1680Z3 ITW5014
Heritage™ H1680Z3 Straight H1680Z3, 1/4-28 SAE-LT Thread, 0.92 in OAL, Clear Trivalent Zinc Plated, Stainless Steel, 0.6 in L Shank
- Manufacturer: G. L. Huyett
- Brand Name: Heritage™
- Part Number: ITW5014
- MPN: H1680Z3
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Extended shank lengths are suited for deep seated bearings, or where materials are exceedingly thick. The extended shank allows for the placement of fittings into recessed areas. 1/4-28 SAE-LT threads are also referred to as 1/4-28 taper threads.

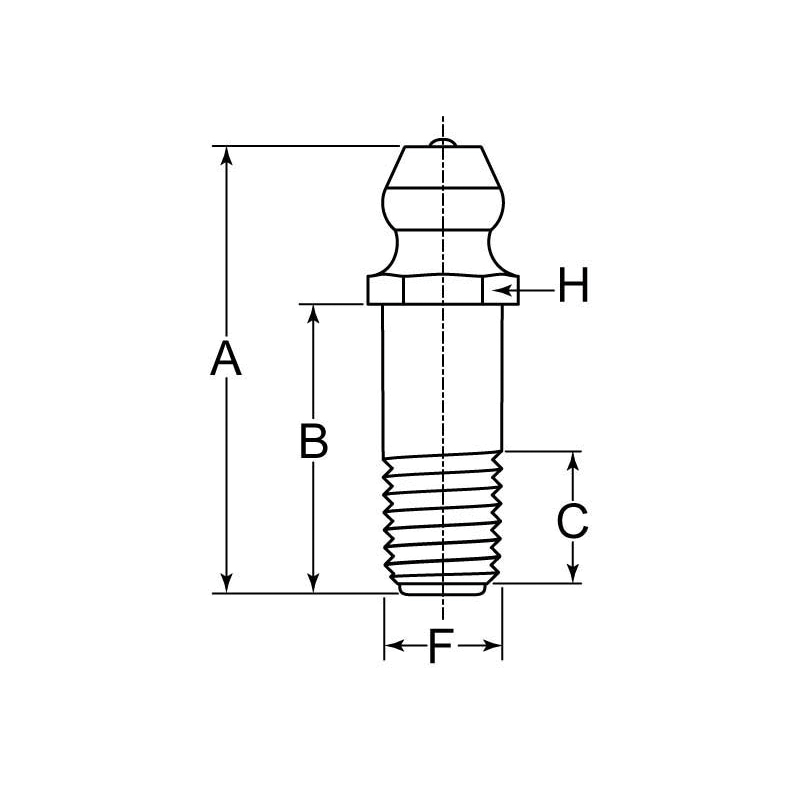

Heritage™ Zerk Grease Fitting, Straight, 1/4-28 SAE-LT Thread, 0.92 in Overall Length, 0.6 in Shank Length, 5/16 in Hex, Clear Trivalent Zinc Plated, Stainless Steel
California residents see Prop 65 WARNINGS
| Finish | : | Clear Trivalent Zinc Plated |
| Hex Size | : | 5/16 in |
| Material | : | Stainless Steel |
| Overall Length | : | 0.92 in |
| Shank Length | : | 0.6 in |
| Thread Size | : | 1/4-28 SAE-LT |
| Type | : | Straight |
- Extra long shank
- Taper thread
