Heritage™ H1607Z3 ITW5003
Heritage™ H1607Z3 Straight H1607Z3, 1/8-27 PTF SAE Thread, 1-1/4 in OAL, Clear Trivalent Zinc Plated, Steel, 3/4 in L Shank
- Manufacturer: G. L. Huyett
- Brand Name: Heritage™
- Part Number: ITW5003
- MPN: H1607Z3
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
1/8-27 PTF pipe threads, which have 27 threads per inch, are sometimes generically referred to as 1/8 in NPT, and may be threaded into NPT and NPTF threaded holes. Thread sealant is recommended for use with NPT threaded holes. The primary difference between the HA1684 and H1684Z3 is the hex size.

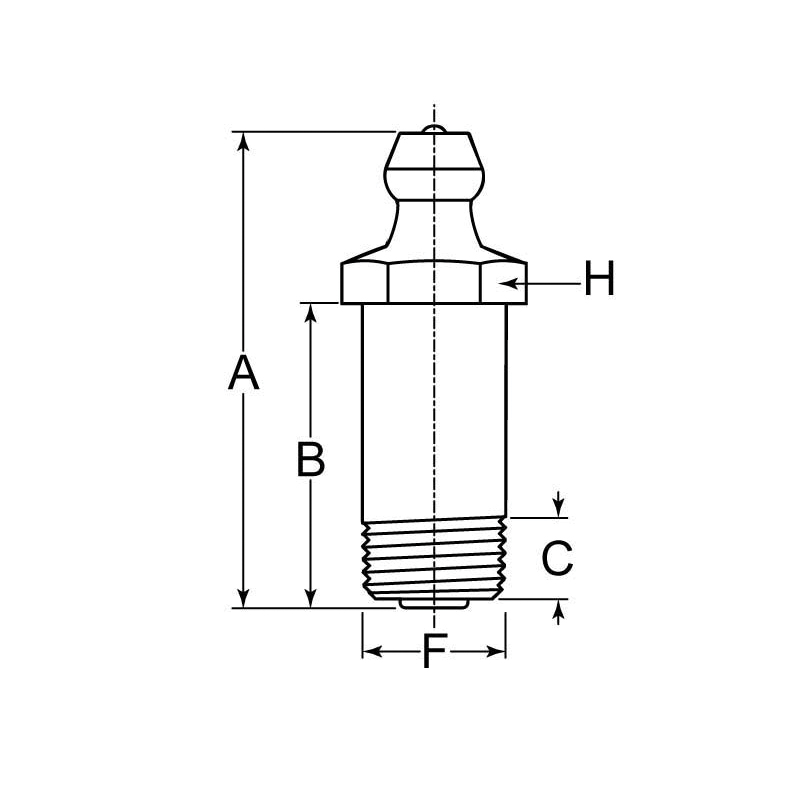

Heritage™ Zerk Grease Fitting, Straight, 1/8-27 PTF SAE Thread, 1-1/4 in Overall Length, 3/4 in Shank Length, 7/16 in Hex, Clear Trivalent Zinc Plated, Steel
California residents see Prop 65 WARNINGS
| Finish | : | Clear Trivalent Zinc Plated |
| Hex Size | : | 7/16 in |
| Material | : | Steel |
| Overall Length | : | 1-1/4 in |
| Shank Length | : | 3/4 in |
| Thread Size | : | 1/8-27 PTF SAE |
| Type | : | Straight |
- Extra long shank
- Short taper thread
Specification Sheet
