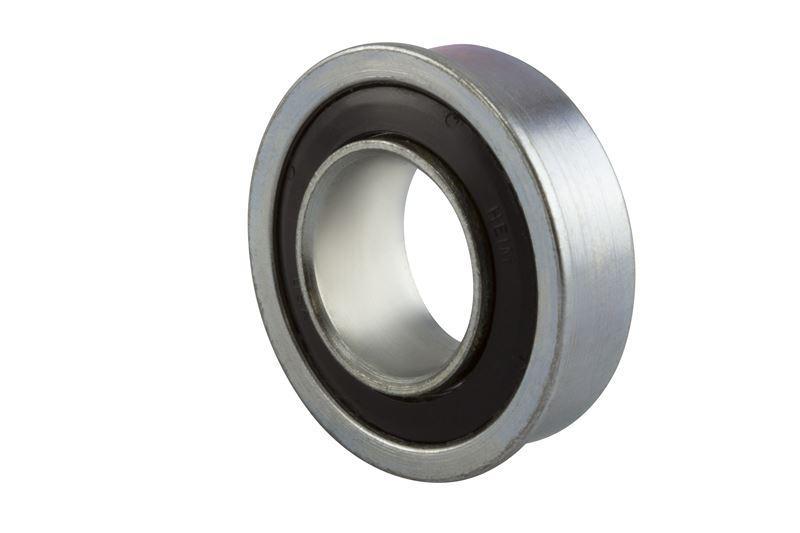

Heim® RF122214AP RBCRF122214AP
Heim® RF122214AP RF Series Round Bore Precision Machined Flanged Radial Ball Bearing, 3/4 in Dia Bore, 1-3/8 in OD, 1 Row, 1/2 in W, 600 lb Load
- Manufacturer: RBC Bearings Incorporated
- Brand Name: Heim®
- Part Number: RBCRF122214AP
- MPN: RF122214AP
- UPC: 637400158880
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Heim® Precision Machined Flanged Radial Ball Bearing, Round Bore, Series: RF Series, 3/4 in Bore Dia, 1-3/8 in Outside Dia, 1 Row, 1/2 in W, 1-1/2 in Flange Dia, Single Sealed Closure, 600 lb, Case Hardened Carbon Steel Bearing, Synthetic Rubber Seal, 1000 rpm Maximum, Uncoated
| Bearing Material | : | Case Hardened Carbon Steel |
| Bore Diameter | : | 3/4 in |
| Closure Type | : | Single Sealed |
| Finish | : | Uncoated |
| Flange Diameter | : | 1-1/2 in |
| Load Capacity | : | 600 lb |
| Maximum Speed | : | 1000 rpm |
| Number of Rows | : | 1 |
| Outside Diameter | : | 1-3/8 in |
| Seal Material | : | Synthetic Rubber |
| Series | : | RF Series |
| Type | : | Round Bore |
| Width | : | 1/2 in |
- Flanged outside ring
- C0 clearance
- Full complement of balls for maximum capacity
- Burnished races uninterrupted by splits or loading slots provide smooth operation
- Single sealed to retain lubricant and exclude contamination
- Flanged for ease of mounting
- Precision machined and heat treated
- Zinc plated for corrosion protection
- Full complement construction
