Gates® BP89 GATBP89
  1. pin-int

Gates® BP89 GATBP89

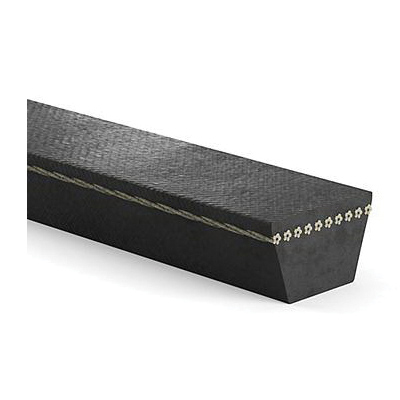

Gates® Predator® BP89 Heavy Duty Banded V-Belt, BP Section, 21/32 in W Top, 92 in L Outside, 13/32 in THK, Chloroprene

  • Manufacturer: Gates Corp
  • Brand Name: Gates®
  • Part Number: GATBP89
  • MPN: BP89
  • UPC: 770075723264
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Predator® single belts are the markets leading heavy duty V-belts. The stronger than steel extra heavy duty belt construction is designed to handle high horsepower motors, frequent shock loads, high heat and the harshest operating environments in extremely demanding applications. They provide extraordinary high impact strength, capacity and wear resistance. Unique in their extreme robustness and high load carrying capability they are unrivaled.

Gates® Predator® V-Belt, Heavy Duty Banded, Series: 9186, BP Section, 21/32 in Top Width, 92 in Outside Length, 13/32 in Thickness, 1 Rib, -30 to 180 deg F, Chloroprene, Aramid Reinforced

Material      :      Chloroprene
Number of Ribs      :      1
Outside Length      :      92 in
Reinforced Material      :      Aramid
Section Size      :      BP
Series      :      9186
Temperature Range      :      -30 to 180 deg F
Thickness      :      13/32 in
Top Width      :      21/32 in
Type      :      Heavy Duty Banded
  • Aramid tensile cords limit stretch while providing extraordinary strength and durability
  • Minimal retensioning reduces maintenance needs
  • The puncture and abrasion-resistant bareback cover reduces friction and heat buildup during shock load conditions
  • Patented curved sidewall extends drive life by reducing sidewall wear on the belt and sheave
