Gates® 5VX1000 GAT5VX1000
  1. pin-int

Gates® 5VX1000 GAT5VX1000

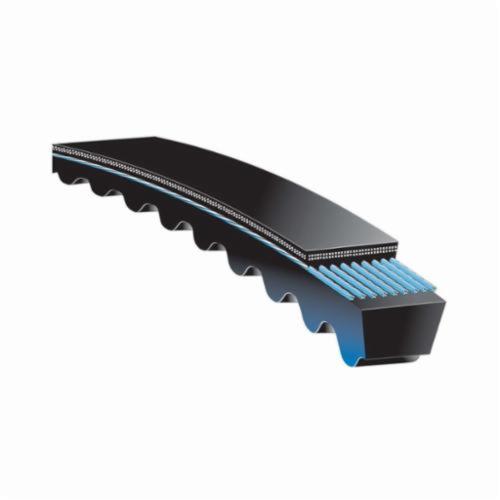

Gates® Super HC® 5VX1000 Heavy Duty Molded Notch V-Belt, 5VX Section, 5/8 in W Top, 100 in L Outside, 35/64 in THK, EPDM

  • Manufacturer: Gates Corp
  • Brand Name: Gates®
  • Part Number: GAT5VX1000
  • MPN: 5VX1000
  • UPC: 072053513691
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Constructed with Gates® proprietary construction, this belt has a superior combination of flex and load carrying capacity, as well as transmitting more horsepower than the classical cross-sections in the same amount of drive space.

Gates® Super HC® V-Belt, Heavy Duty Molded Notch, Series: 9414, 5VX Section, 5/8 in Top Width, 100 in Outside Length, 35/64 in Thickness, 1 Rib, 7.958 in Diameter Minimum Pulley, -70 to 250 deg F, EPDM, Flex-Bonded Polyester Reinforced

Material      :      EPDM
Minimum Pulley Diameter      :      7.958 in
Number of Ribs      :      1
Outside Length      :      100 in
Reinforced Material      :      Flex-Bonded Polyester
Section Size      :      5VX
Series      :      9414
Temperature Range      :      -70 to 250 deg F
Thickness      :      35/64 in
Top Width      :      5/8 in
Type      :      Heavy Duty Molded Notch
  • Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
  • Notches molded into the belt during manufacturing increase flexibility making this belt well suited for drives with smaller diameter sheaves
  • Belt edge is machined for even sheave groove contact resulting in smoother running, less slip and wear
  • Patented ethylene material construction provides -70 to 250 deg F temperature range to resist belt cracking
