Gates® 5MGT-500-15 GAT5MGT-500-15
  1. pin-int

Gates® 5MGT-500-15 GAT5MGT-500-15

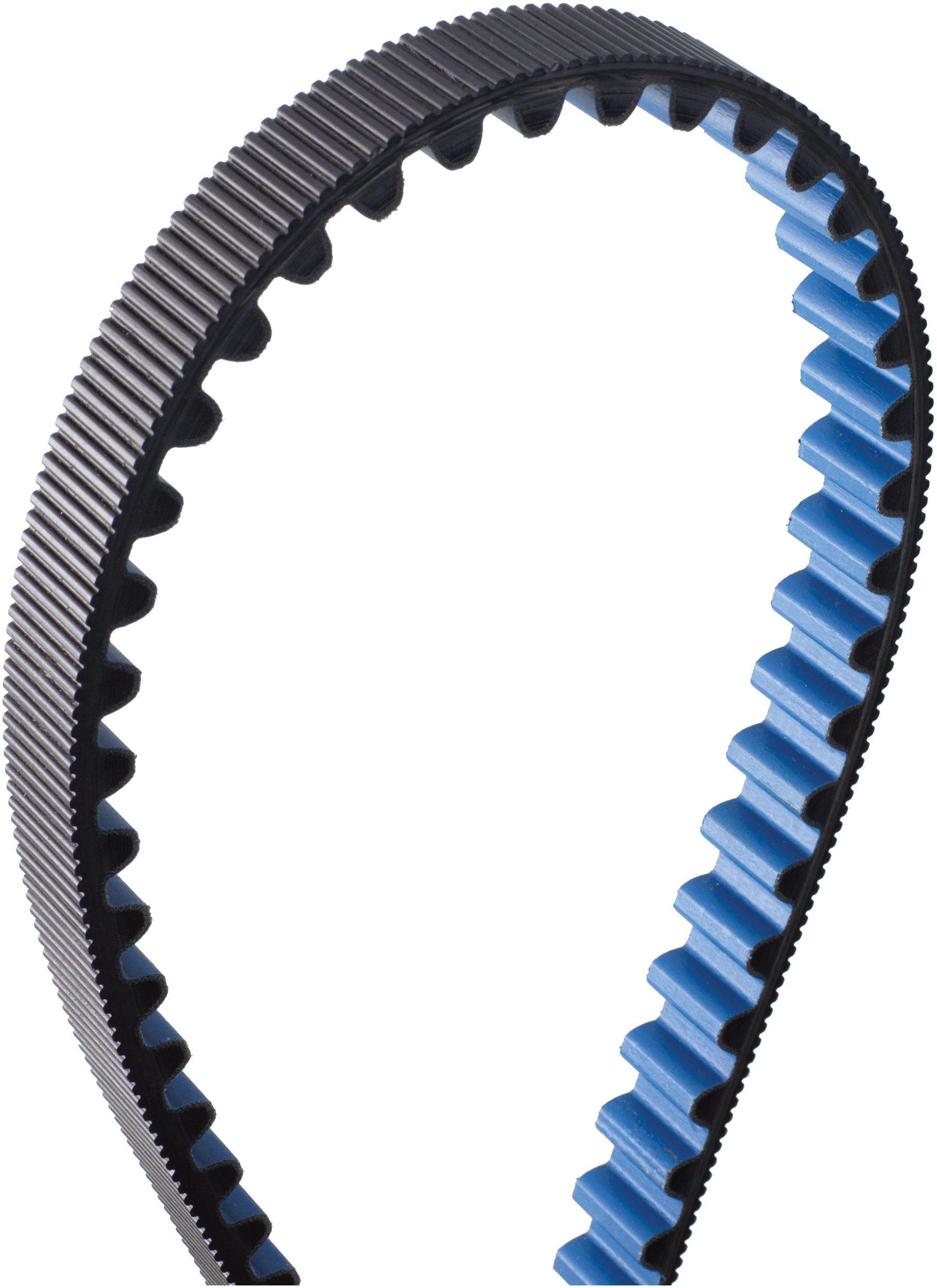

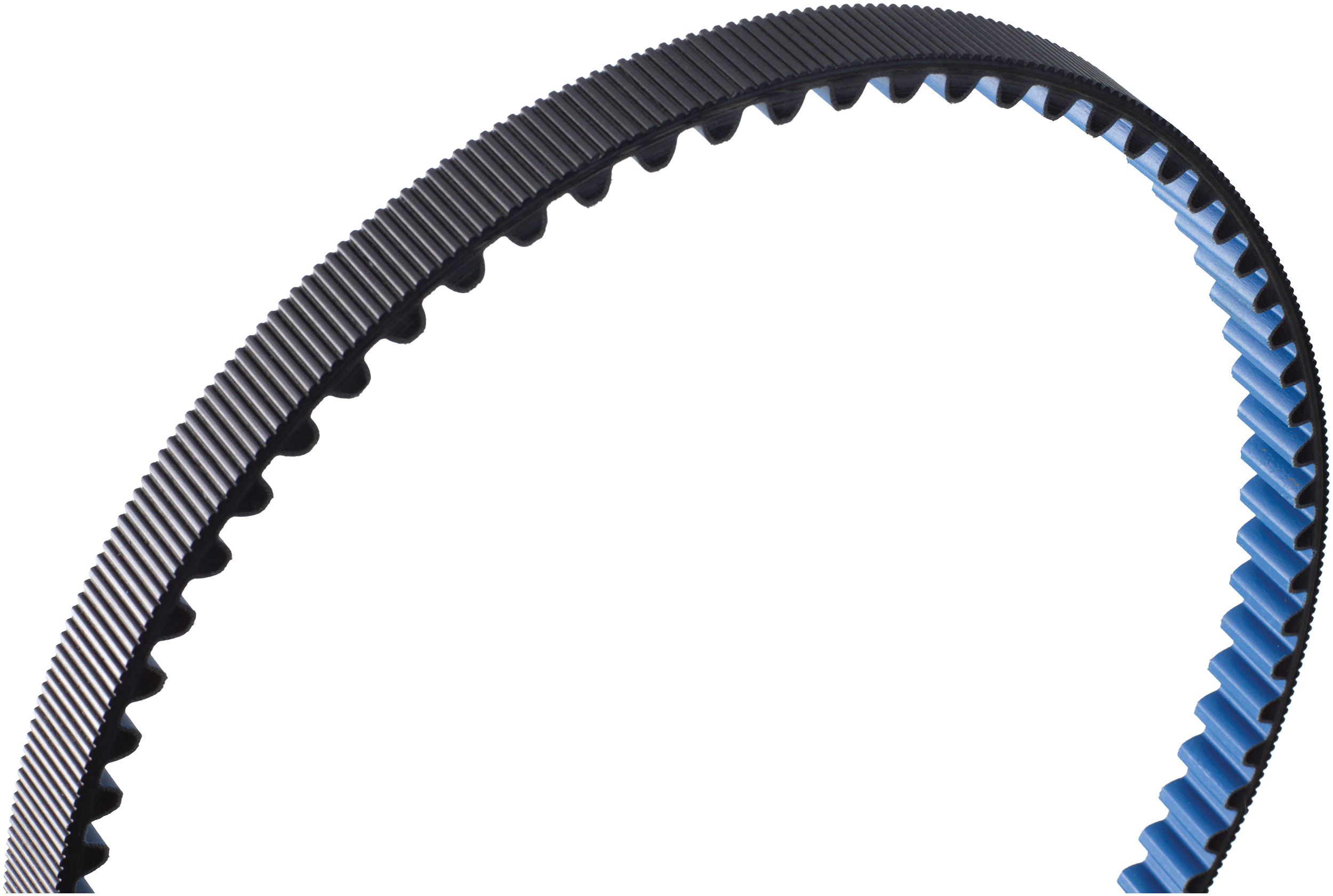

Gates® 5MGT-500-15 GT Poly Chain Synchronous Belt, 5M Section, 0.591 in W Top, 19.69 in L Outside, Polyurethane

  • Manufacturer: Gates Corp
  • Brand Name: Gates®
  • Part Number: GAT5MGT-500-15
  • Alt Part Number: 92706032
  • MPN: 5MGT-500-15
  • UPC: 072053691436
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Give yourself a competitive advantage by designing in the Gates Poly Chain® GT™ Carbon drive system instead of roller chain in your next power transmission application. The patented use of carbon fiber as the tensile cord in this belt provides increased horsepower rating for greater power density and compactness. When combined with Gates Poly Chain GT sprockets, you have a lightweight, long-lasting, maintenance-free system that's more than a match for roller chain.

Gates®, 5MGT-500-15, Synchronous Belt, Poly Chain, Series: GT, 5M Section, 0.591 in Top Width, 19.69 in Outside Length, 100 Ribs, -65 to 185 deg F, Polyurethane, Black

Color      :      Black
Material      :      Polyurethane
Number of Ribs      :      100
Outside Length      :      19.69 in
Section Size      :      5M
Series      :      GT
Temperature Range      :      -65 to 185 deg F
Top Width      :      0.591 in
Type      :      Poly Chain

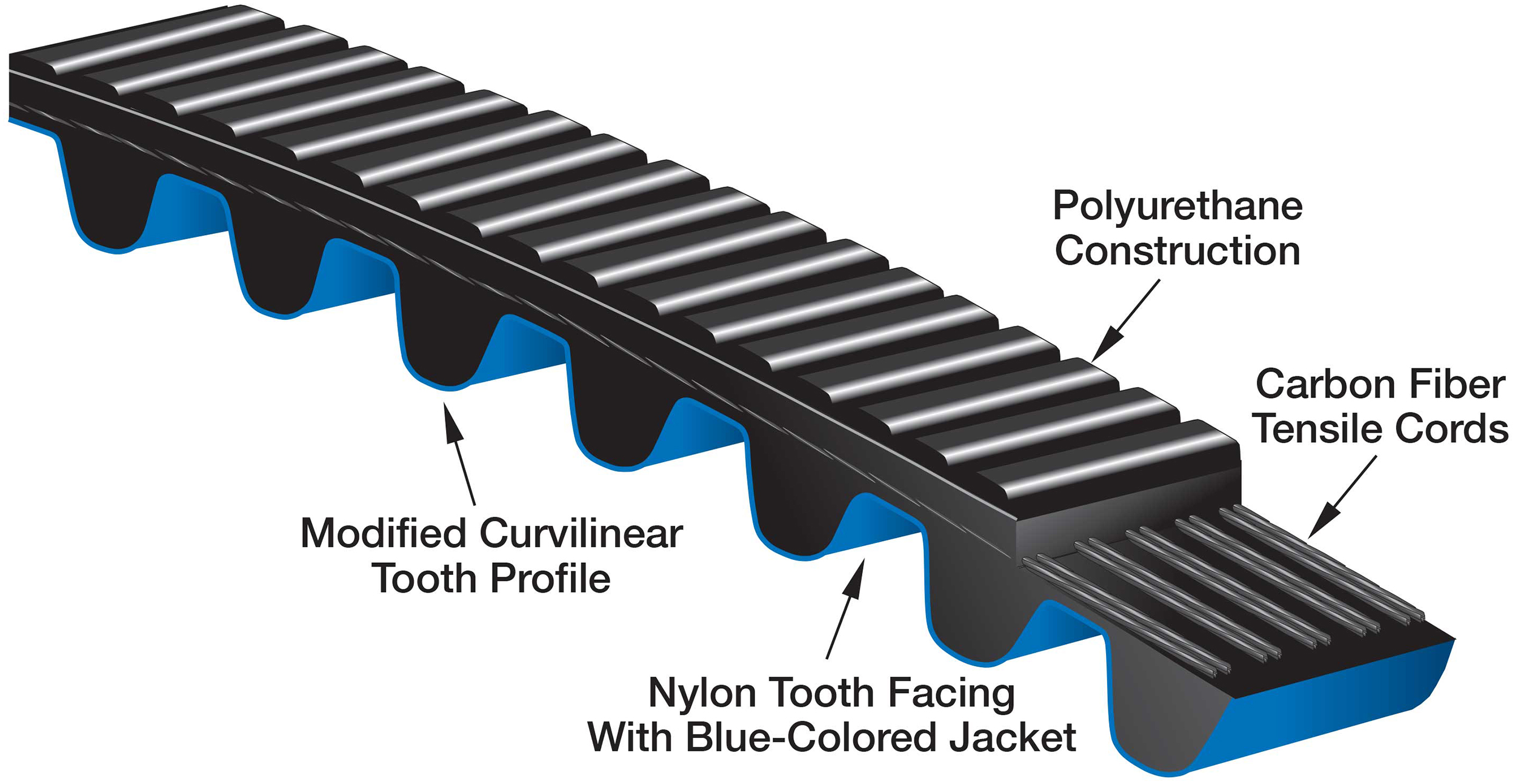

  • Robust carbon tensile cord combines minimal stretch with extraordinary strength and load carrying capacity
  • Gates curvilinear tooth profile provides high shear strength and improved load carrying capacity
  • Nylon tooth facing reduces friction and eliminates the need for lubrication
  • Equivalent capacity to roller chain drives in the same width that offer a maintenance-free, clean solution with no lubrication or retensioning required
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_5MGT_500_15_Specification_Sheet.pdf
