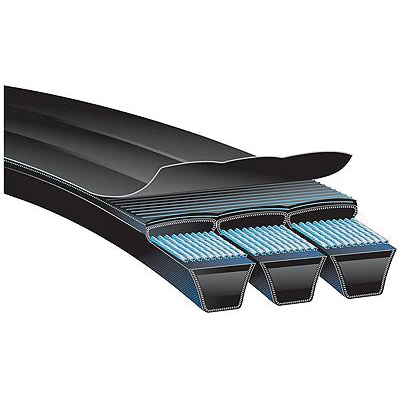

Gates® 5/C120 GAT5/C120

Gates® Hi-Power® PowerBand™ V-Belt construction allows multiple belts to function as a single unit, with even load distribution and each strand fitting securely in the sheave groove. It offers a solution for drives where single belts vibrate, turn over or jump off the pulleys. They consist of several V-belts joined together by a permanent, high strength tie band offering a tougher more stable solution compared to a single belt.

Gates® Hi-Power® II PowerBand® V-Belt, Banded Heavy Duty, Series: 9094, C Section, 7/8 in Top Width, 124 in Outside Length, 17/32 in Thickness, 5 Ribs, 7.958 in Diameter Minimum Pulley, EPDM, Flex-Bonded Polyester Reinforced

• Flex bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
• The Flex-Weave® Cover is a patented fabric construction for longer cover life, providing extended protection to the belt core from oil, dirt and heat
• Concave sidewalls provide proper cord support and full contact with the sheave groove for equal loading and uniform wear
• Gates® curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
• The tie band assures high lateral rigidity, guiding the belt in a straight line and preventing it from coming off the drive
• Static conductive (ISO 1813) and can as such be used in the conditions described in the directive 2014/34/EU-ATEX
• Savings in drive space and weight due to high transmission efficiency
• High stability and smooth running on the toughest drives
• Important design economies possible
• Better resistance to vibrations

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_92406179_Manual.pdf
