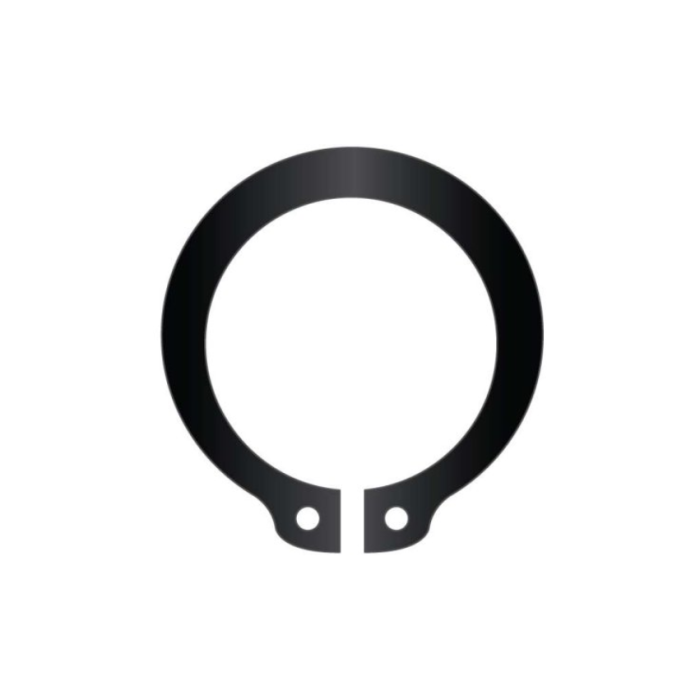

Part Number: SHR-098, Weight (lbs.): 0.0078, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: Snap Rings External, Hardness: HRC 47-56, Image: SHR-098.png, Country of Origin: USA, Groove Diameter: .925 in, Shaft Diameter: .984 in, Thickness: .078 in, Style: Stamped, Groove Width: .086 in, Allowable Corner Chamfers: .083 in, Allowable Corner Radii: .100 in, in Groove: 1.310 in, Edge Margin: .093 in, Free Diameter: .906 in, Groove Depth: .030 in, Groove Diameter to Shaft Concentricity: .002 in, Maximum Thrust Load: 2500 Pound-Force, Manufacturer Part Number: SHR-98ST PA, Free Diameter Tolerance: -0.5, Groove Diameter Tolerance: -0.333333333333333, RPM Limits: 30000 30000 rpm, Shaft Diameter Fraction: 63/64 in, Thickness Tolerance: ±.003, Hole Diameter: .078 in, Duty: Heavy Duty, Clearance Diameter Expanded Over Shaft: 1.370 in, Gaging Diameter Maximum: 1.177 in, Lug Height: .180 in, Maximum Section: .151 in, Minimum Section: .084 in, Maximum Section Tolerance: ±.006, Hole Diameter Tolerance: -7.5, Lug Height Tolerance: ±.005, Minimum Section Tolerance: ±.006
| Finish | : | Phosphate |
| Material | : | Carbon Spring Steel |
| Shaft Diameter | : | .984 in |
| Thickness | : | .078 in |
| Type | : | Snap Rings External |
