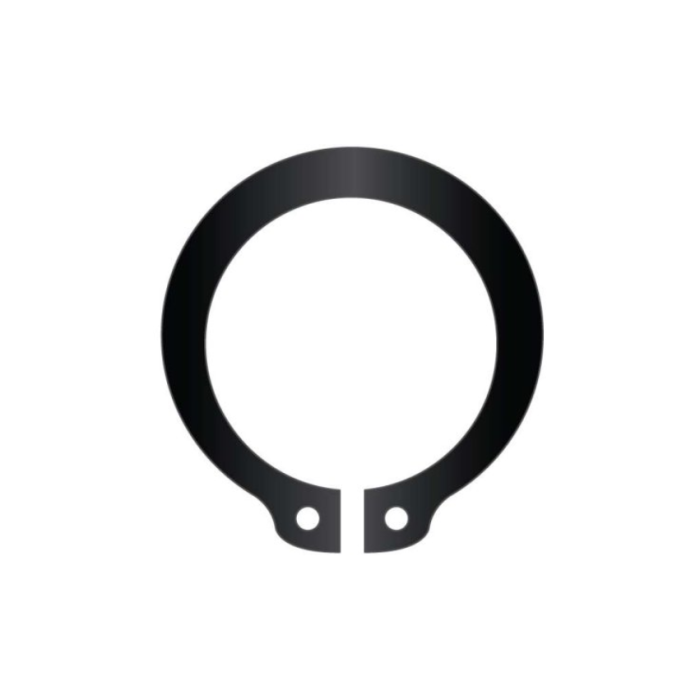

G.L.HUYETT™ SHR-062 IRR7200-062

Part Number: SHR-062, Weight (lbs.): 0.0023, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: Snap Rings External, Hardness: HR30N 67.5-72, Image: SHR-062.png, Country of Origin: USA, Groove Diameter: .588 in, Shaft Diameter: .625 in, Thickness: .050 in, Style: Stamped, Groove Width: .056 in, Allowable Corner Chamfers: .062 in, Allowable Corner Radii: .074 in, in Groove: .860 in, Edge Margin: .057 in, Free Diameter: .575 in, Groove Depth: .019 in, Groove Diameter to Shaft Concentricity: .002 in, Maximum Thrust Load: 750 Pound-Force, Manufacturer Part Number: SHR-62ST PA, Free Diameter Tolerance: -0.5, Groove Diameter Tolerance: -0.333333333333333, Shaft Diameter Fraction: 5/8 in, Thickness Tolerance: ±.002, Hole Diameter: .050 in, Duty: Heavy Duty, Clearance Diameter Expanded Over Shaft: .900 in, Gaging Diameter Maximum: .758 in, Lug Height: .130 in, Maximum Section: .106 in, Minimum Section: .059 in, Maximum Section Tolerance: ±.005, Hole Diameter Tolerance: -5, Lug Height Tolerance: ±.004, Minimum Section Tolerance: ±.005
