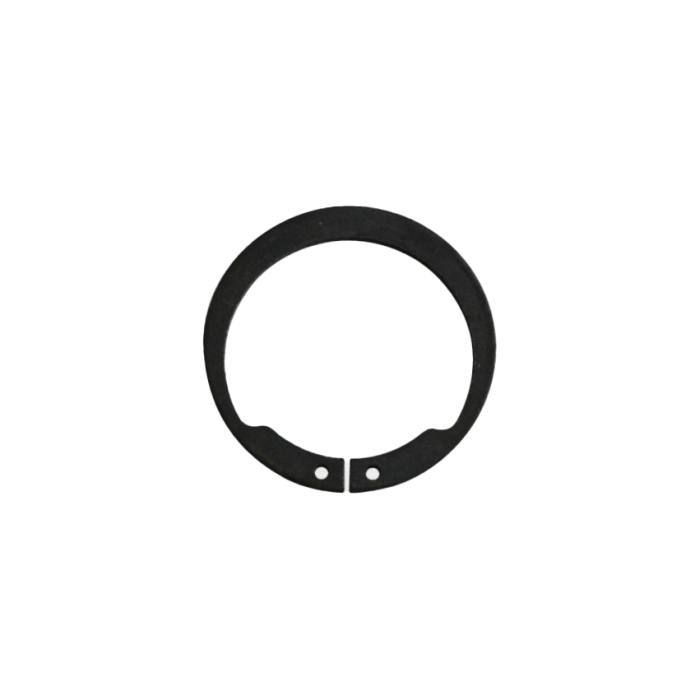

Part Number: SHI-177, Weight (lbs.): 0.01584, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: inverted External, Hardness: HRC 47-53, Image: SHI-177.png, Country of Origin: USA, Groove Diameter: 1.650 in, Shaft Diameter: 1.750 in, Thickness: .062 in, Style: Stamped, Groove Width: .068 in, Allowable Corner Chamfers: .073 in, Allowable Corner Radii: .116 in, in Groove: 2.080 in, Edge Margin: .150 in, Free Diameter: 1.637 in, Groove Depth: .050 in, Groove Diameter to Shaft Concentricity: .005 in, Maximum Thrust Load: 2250 Pound-Force, Manufacturer Part Number: SHI-177ST PA, Free Diameter Tolerance: -0.65, Groove Diameter Tolerance: ±.005, RPM Limits: 11700 11700 rpm, Shaft Diameter Fraction: 1-3/4 in, Thickness Tolerance: ±.003, Hole Diameter: .078 in, Duty: Standard Duty, Clearance Diameter Expanded Over Shaft: 2.180 in, Gaging Diameter Maximum: 2.070 in, Maximum Section: .196 in, Minimum Section: .098 in, Maximum Section Tolerance: ±.006, Hole Diameter Tolerance: -7.5, Minimum Section Tolerance: ±.006
| Finish | : | Phosphate |
| Material | : | Carbon Spring Steel |
| Shaft Diameter | : | 1.750 in |
| Thickness | : | .062 in |
| Type | : | inverted External |
