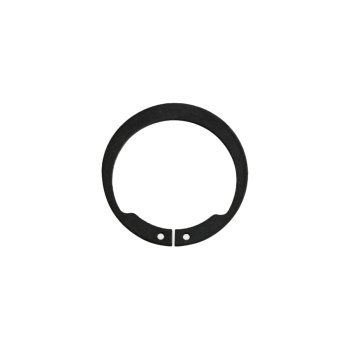

Part Number: SHI-125, Weight (lbs.): 0.0076, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: inverted External, Hardness: HRC 47-52, Image: SHI-125.png, Country of Origin: USA, Groove Diameter: 1.176 in, Shaft Diameter: 1.250 in, Thickness: .050 in, Style: Stamped, Groove Width: .056 in, Allowable Corner Chamfers: .060 in, Allowable Corner Radii: .096 in, in Groove: 1.520 in, Edge Margin: .111 in, Free Diameter: 1.156 in, Groove Depth: .037 in, Groove Diameter to Shaft Concentricity: .005 in, Maximum Thrust Load: 1460 Pound-Force, Manufacturer Part Number: SHI-125ST PA, Free Diameter Tolerance: -0.666666666666667, Groove Diameter Tolerance: ±.004, Shaft Diameter Fraction: 1-1/4 in, Thickness Tolerance: ±.002, Hole Diameter: .078 in, Duty: Standard Duty, Clearance Diameter Expanded Over Shaft: 1.590 in, Gaging Diameter Maximum: 1.520 in, Maximum Section: .157 in, Minimum Section: .079 in, Maximum Section Tolerance: ±.006, Hole Diameter Tolerance: -7.5, Minimum Section Tolerance: ±.006
| Finish | : | Phosphate |
| Material | : | Carbon Spring Steel |
| Shaft Diameter | : | 1.250 in |
| Thickness | : | .050 in |
| Type | : | inverted External |
