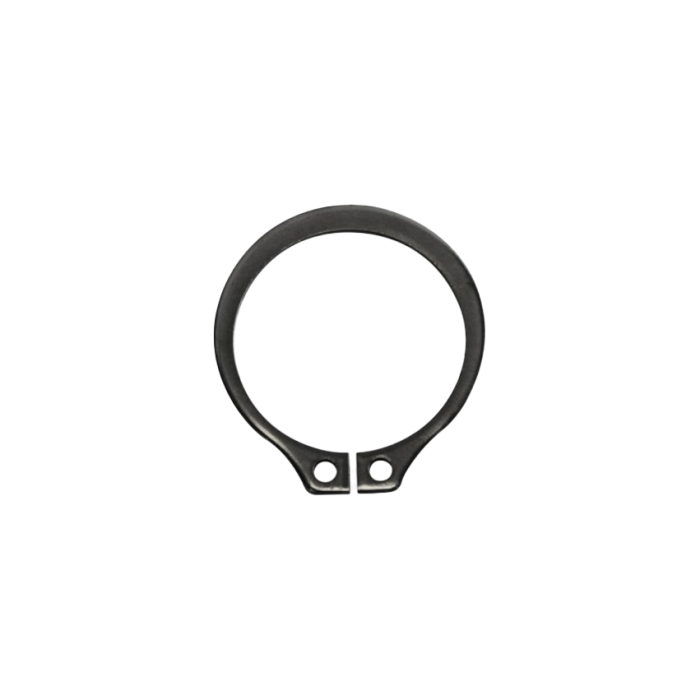

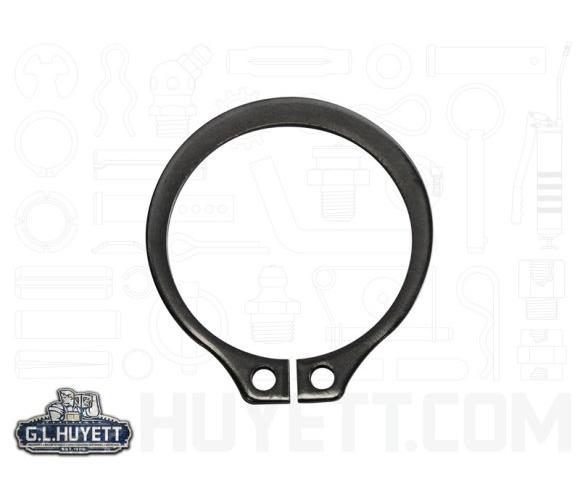

G.L.HUYETT™ SH-050-SS IRR3100-050SS

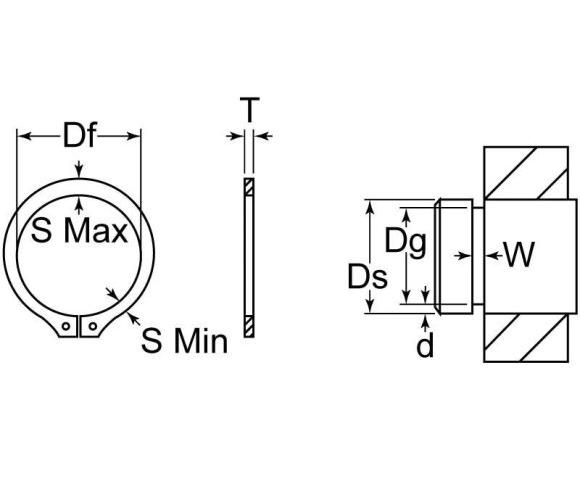

Part Number: SH-050-SS, Weight (lbs.): 0.00091, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Plain, Material: Stainless Steel, Type: Snap Rings External, Hardness: HR30N 63-69.5, Image: SH-050-SS.png, Country of Origin: USA, Groove Diameter: .468 in, Shaft Diameter: .500 in, Thickness: .035 in, Style: Stamped, Groove Width: .039 in, Allowable Corner Chamfers: .020 in, Allowable Corner Radii: .034 in, in Groove: .740 in, Edge Margin: .048 in, Free Diameter: .461 in, Groove Depth: .020 in, Groove Diameter to Shaft Concentricity: .004 in, Maximum Thrust Load: 910 Pound-Force, Manufacturer Part Number: SH-50SS, Free Diameter Tolerance: -0.4, Groove Diameter Tolerance: ±.002, RPM Limits: 40000 40000 rpm, Shaft Diameter Fraction: 1/2 in, Thickness Tolerance: ±.002, Hole Diameter: .047 in, Duty: Standard Duty, Clearance Diameter Expanded Over Shaft: .770 in, Gaging Diameter Maximum: .574 in, Lug Height: .108 in, Maximum Section: .065 in, Minimum Section: .040 in, Maximum Section Tolerance: ±.004, Hole Diameter Tolerance: -5, Lug Height Tolerance: ±.003, Minimum Section Tolerance: ±.004, Material Grade: PH 15-7/17-7
