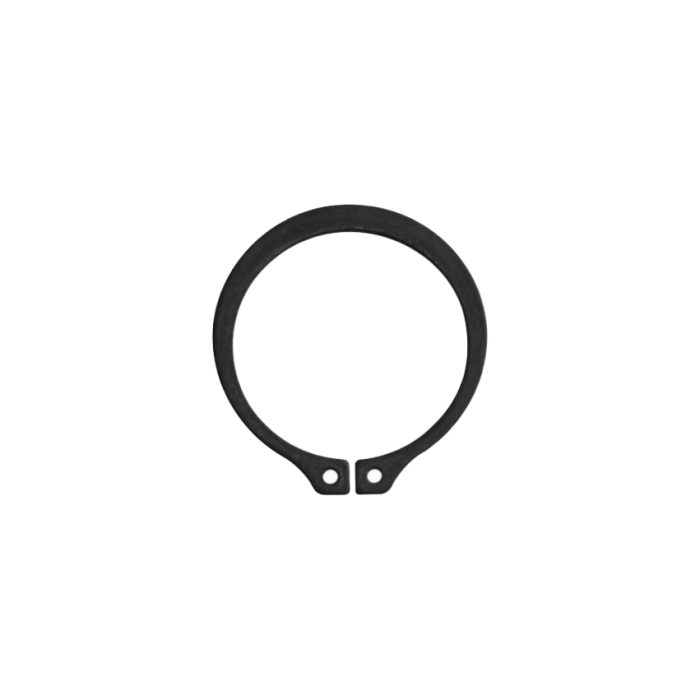

Part Number: SH-037, Weight (lbs.): 0.00041, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: Snap Rings External, Hardness: HR30N 69.5-73, Image: SH-037.png, Country of Origin: USA, Groove Diameter: .352 in, Shaft Diameter: .375 in, Thickness: .025 in, Style: Stamped, Groove Width: .029 in, Allowable Corner Chamfers: .016 in, Allowable Corner Radii: .026 in, in Groove: .590 in, Edge Margin: .036 in, Free Diameter: .338 in, Groove Depth: .010 in, Groove Diameter to Shaft Concentricity: .002 in, Maximum Thrust Load: 470 Pound-Force, Manufacturer Part Number: SH-37ST PA, Free Diameter Tolerance: -0.4, Groove Diameter Tolerance: ±.002, RPM Limits: 60000 60000 rpm, Shaft Diameter Fraction: 3/8 in, Thickness Tolerance: ±.002, Hole Diameter: .041 in, Duty: Standard Duty, Clearance Diameter Expanded Over Shaft: .610 in, Gaging Diameter Maximum: .433 in, Lug Height: .088 in, Maximum Section: .050 in, Minimum Section: .031 in, Maximum Section Tolerance: ±.003, Hole Diameter Tolerance: -5, Lug Height Tolerance: ±.003, Minimum Section Tolerance: ±.003
| Finish | : | Phosphate |
| Material | : | Carbon Spring Steel |
| Shaft Diameter | : | .375 in |
| Thickness | : | .025 in |
| Type | : | Snap Rings External |
