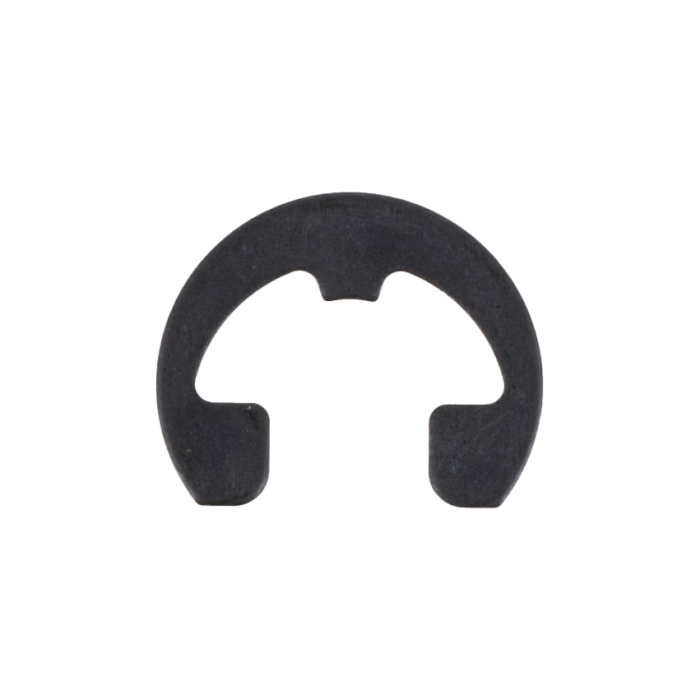

Part Number: RE-037, Weight (lbs.): 0.001461, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: Reinforced External E-Clips, Hardness: HRC 34-43, Image: RE-037.png, Country of Origin: USA, Groove Diameter: .303 in, Shaft Diameter: .375 in, Thickness: .035 in, Style: Stamped, Groove Width: .039 in, Allowable Corner Chamfers: .055 in, Allowable Corner Radii: .070 in, in Groove: .680 in, Clear Outside Diameter: .660 in, Edge Margin: .072 in, Free Diameter: .292 in, Groove Depth: .036 in, Groove Diameter to Shaft Concentricity: .003 in, Maximum Thrust Load: 520 Pound-Force, Manufacturer Part Number: RE-37ST PA, Free Diameter Tolerance: ±.004, Groove Diameter Tolerance: ±.003, Shaft Diameter Fraction: 3/8 in, Thickness Tolerance: ±.002
| Finish | : | Phosphate |
| Material | : | Carbon Spring Steel |
| Outside Diameter | : | 0.66 in |
| Shaft Diameter | : | .375 in |
| Thickness | : | .035 in |
| Type | : | Reinforced External E-Clips |
