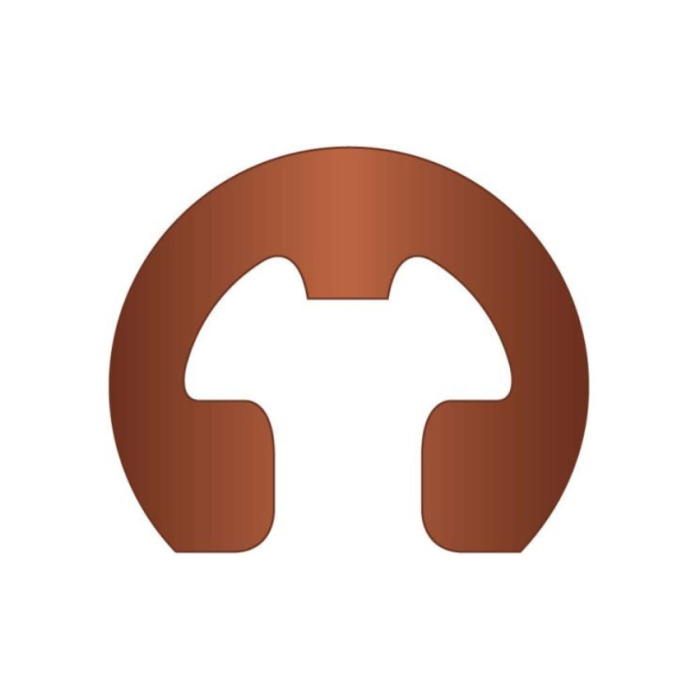

G.L.HUYETT™ RE-025-BC IRR1200-025BC

Part Number: RE-025-BC, Weight (lbs.): 0.00075, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Plain, Material: Beryllium Copper, Type: Reinforced External E-Clips, Hardness: HR30N 54-62, Image: RE-025-BC.png, Country of Origin: USA, Groove Diameter: .210 in, Shaft Diameter: .250 in, Thickness: .025 in, Style: Stamped, Groove Width: .029 in, Allowable Corner Chamfers: .050 in, Allowable Corner Radii: .065 in, in Groove: .530 in, Clear Outside Diameter: .516 in, Edge Margin: .040 in, Free Diameter: .204 in, Groove Depth: .020 in, Groove Diameter to Shaft Concentricity: .002 in, Maximum Thrust Load: 250 Pound-Force, Manufacturer Part Number: RE-25BC, Free Diameter Tolerance: ±.003, Groove Diameter Tolerance: ±.002, Shaft Diameter Fraction: 1/4 in, Thickness Tolerance: ±.002
