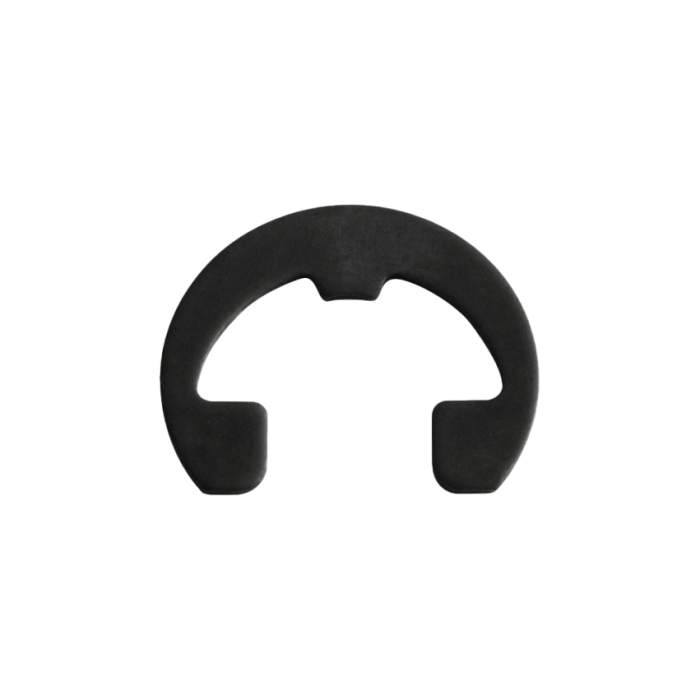

G.L.HUYETT™ RE-012 IRR1200-012

Part Number: RE-012, Weight (lbs.): 0.00013, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: Reinforced External E-Clips, Hardness: HR15N 77-82, Image: RE-012.png, Country of Origin: USA, Groove Diameter: .095 in, Shaft Diameter: .125 in, Thickness: .015 in, Style: Stamped, Groove Width: .020 in, Allowable Corner Chamfers: .033 in, Allowable Corner Radii: .045 in, in Groove: .283 in, Clear Outside Diameter: .270 in, Edge Margin: .030 in, Free Diameter: .093 in, Groove Depth: .015 in, Groove Diameter to Shaft Concentricity: .002 in, Maximum Thrust Load: 75 Pound-Force, Manufacturer Part Number: RE-12ST PA, Free Diameter Tolerance: -0.333333333333333, Shaft Diameter Fraction: 1/8 in, Thickness Tolerance: ±.002
