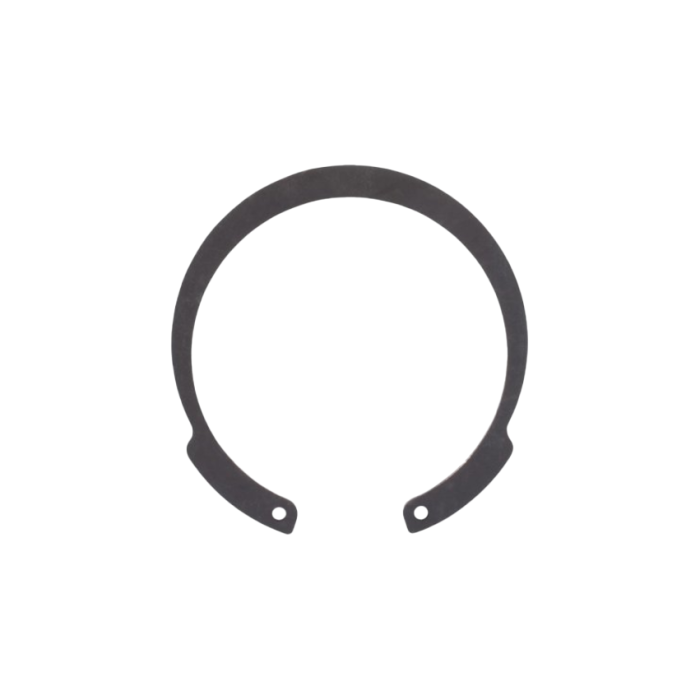

Part Number: HOI-334, Weight (lbs.): 0.0767, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: internal, Hardness: HRC 47-52, Image: HOI-334.png, Country of Origin: USA, Groove Diameter: 3.546 in, Thickness: .109 in, Style: Stamped, Groove Width: .103 in, Allowable Corner Chamfers: .111 in, Allowable Corner Radii: .177 in, in Groove: 2.870 in, Edge Margin: .300 in, Free Diameter: 3.611 in, Groove Depth: .086 in, Groove Diameter to Shaft Concentricity: .006 in, Maximum Thrust Load: 9000 Pound-Force, Manufacturer Part Number: HOI-334ST PA, Free Diameter Tolerance: -1.5, Groove Diameter Tolerance: ±.006, Thickness Tolerance: ±.003, Hole Diameter: .125 in, Maximum Section: .321 in, Minimum Section: .155 in, Maximum Section Tolerance: ±.008, Hole Diameter Tolerance: -7.5, Minimum Section Tolerance: ±.008, Housing Diameter: 3.344 in, Military Specification: No, Gap Width Minimum: .810 in, in Housing: 2.670 in, Housing Diameter Fraction: 3-11/32 in
| Finish | : | Phosphate |
| Housing Diameter | : | 3.344 in |
| Material | : | Carbon Spring Steel |
| Thickness | : | .109 in |
| Type | : | internal |
