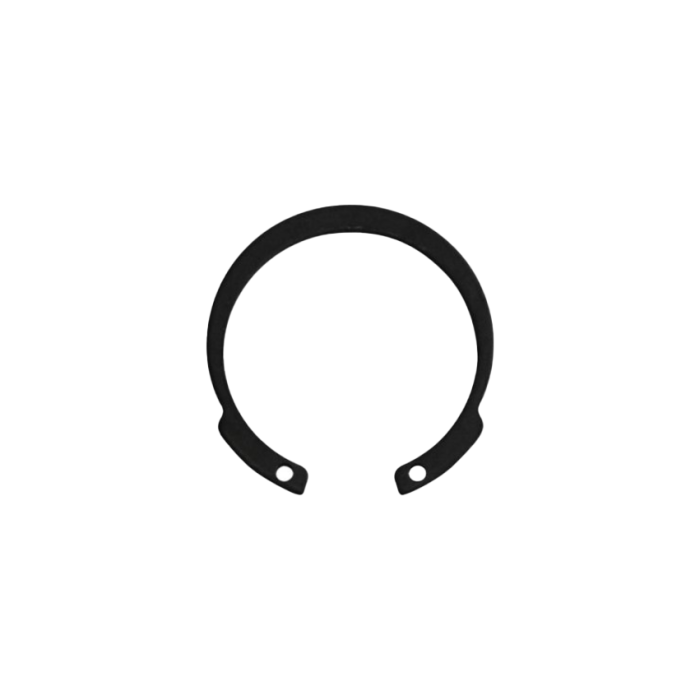

Part Number: HOI-250, Weight (lbs.): 0.0319, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: internal, Hardness: HRC 47-52, Image: HOI-250.png, Country of Origin: USA, Groove Diameter: 2.648 in, Thickness: .078 in, Style: Stamped, Groove Width: .068 in, Allowable Corner Chamfers: .090 in, Allowable Corner Radii: .144 in, in Groove: 2.100 in, Edge Margin: .222 in, Free Diameter: 2.700 in, Groove Depth: .061 in, Groove Diameter to Shaft Concentricity: .006 in, Maximum Thrust Load: 4600 Pound-Force, Manufacturer Part Number: HOI-250ST PA, Free Diameter Tolerance: -1.66666666666667, Groove Diameter Tolerance: ±.006, Thickness Tolerance: ±.003, Hole Diameter: .094 in, Maximum Section: .254 in, Minimum Section: .120 in, Maximum Section Tolerance: ±.007, Hole Diameter Tolerance: -7.5, Minimum Section Tolerance: ±.007, Housing Diameter: 2.500 in, Military Specification: No, Gap Width Minimum: .590 in, in Housing: 1.960 in, Housing Diameter Fraction: 2-1/2 in
| Finish | : | Phosphate |
| Housing Diameter | : | 2.5 in |
| Material | : | Carbon Spring Steel |
| Thickness | : | .078 in |
| Type | : | internal |
