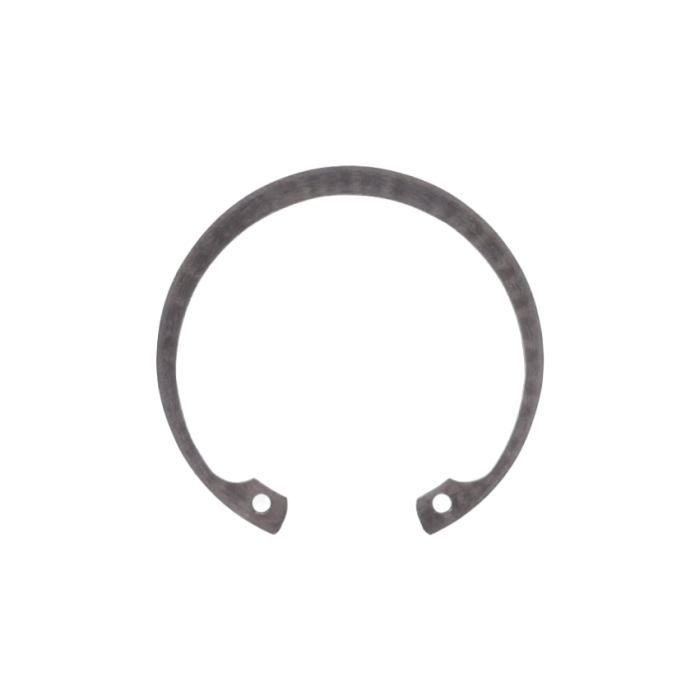

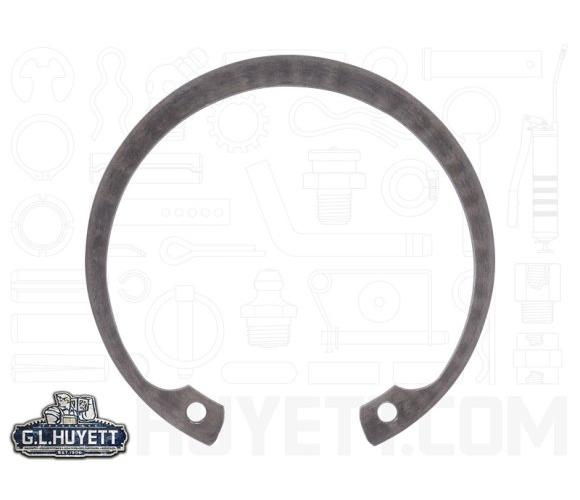

G.L.HUYETT™ HO-200 IRR3000X200

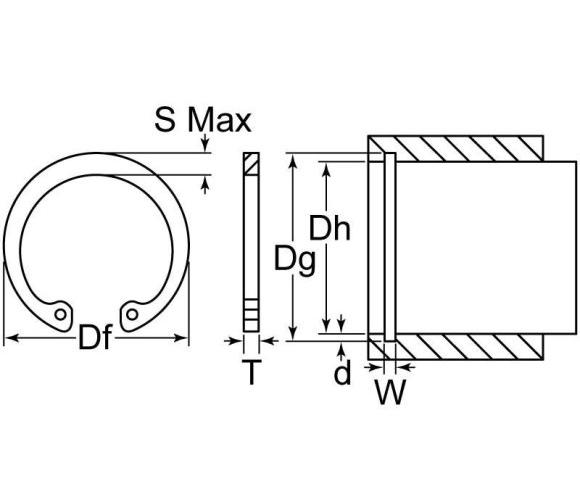

Part Number: HO-200, Weight (lbs.): 0.0137, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: Internal, Hardness: HRc 47-52, Image: HO-200.png, Country of Origin: USA, Groove Diameter: 2.122 in, Thickness: .062 in, Style: Stamped, Groove Width: .068 in, Allowable Corner Chamfers: .050 in, Allowable Corner Radii: .064 in, in Groove: 1.640 in, Edge Margin: .183 in, Free Diameter: 2.210 in, Groove Depth: .061 in, Groove Diameter to Shaft Concentricity: .005 in, Maximum Thrust Load: 3900 Pound-Force, Manufacturer Part Number: HO-200ST PD, Free Diameter Tolerance: -1.4, Groove Diameter Tolerance: ±.005, Thickness Tolerance: ±.003, Hole Diameter: .093 in, Lug Height: .230 in, Maximum Section: .170 in, Minimum Section: .085 in, Maximum Section Tolerance: ±.007, Hole Diameter Tolerance: -7.5, Lug Height Tolerance: ±.005, Minimum Section Tolerance: ±.007, Housing Diameter: 2.000 in, Military Specification: No, Gap Width Minimum: .453 in, in Housing: 1.520 in, Housing Diameter Fraction: 2 in
