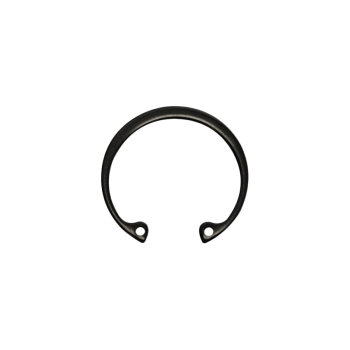

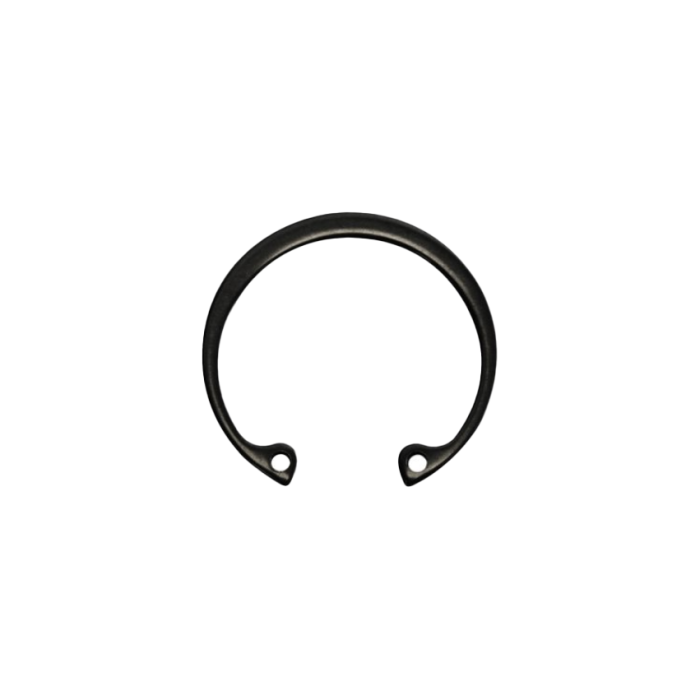

Part Number: HO-165, Weight (lbs.): 0.0104, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: Internal, Hardness: HRC 47-52, Image: HO-165.png, Country of Origin: USA, Groove Diameter: 1.760 in, Thickness: .062 in, Style: Stamped, Groove Width: .070 in, Allowable Corner Chamfers: .050 in, Allowable Corner Radii: .064 in, in Groove: 1.270 in, Edge Margin: .153 in, Free Diameter: 1.835 in, Groove Depth: .051 in, Groove Diameter to Shaft Concentricity: .005 in, Maximum Thrust Load: 3900 Pound-Force, Manufacturer Part Number: HO-165ST PD, Free Diameter Tolerance: -1.4, Groove Diameter Tolerance: ±.005, Thickness Tolerance: ±.002, Hole Diameter: .078 in, Lug Height: .230 in, Maximum Section: .167 in, Minimum Section: .083 in, Maximum Section Tolerance: ±.007, Hole Diameter Tolerance: -7.5, Lug Height Tolerance: ±.005, Minimum Section Tolerance: ±.007, Housing Diameter: 1.653 in, Military Specification: No, Gap Width Minimum: .348 in, in Housing: 1.170 in
| Finish | : | Phosphate |
| Housing Diameter | : | 1.653 in |
| Material | : | Carbon Spring Steel |
| Thickness | : | .062 in |
| Type | : | Internal |
