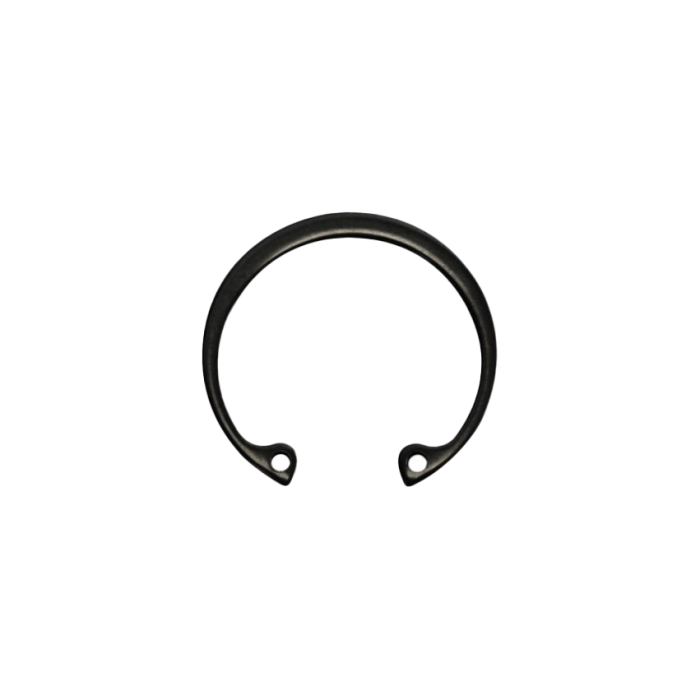

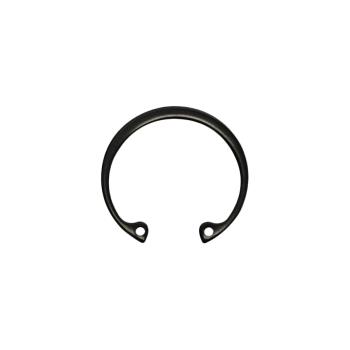

Part Number: HO-137, Weight (lbs.): 0.0051, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: Internal, Hardness: HRC 47-52, Image: HO-137.png, Country of Origin: USA, Groove Diameter: 1.460 in, Thickness: .050 in, Style: Stamped, Groove Width: .060 in, Allowable Corner Chamfers: .038 in, Allowable Corner Radii: .048 in, in Groove: 1.070 in, Edge Margin: .129 in, Free Diameter: 1.526 in, Groove Depth: .043 in, Groove Diameter to Shaft Concentricity: .005 in, Maximum Thrust Load: 2400 Pound-Force, Manufacturer Part Number: HO-137ST PD, Free Diameter Tolerance: -1.25, Groove Diameter Tolerance: ±.004, Thickness Tolerance: ±.002, Hole Diameter: .078 in, Lug Height: .180 in, Maximum Section: .130 in, Minimum Section: .063 in, Maximum Section Tolerance: ±.006, Hole Diameter Tolerance: -7.5, Lug Height Tolerance: ±.005, Minimum Section Tolerance: ±.006, Housing Diameter: 1.375 in, Military Specification: No, Gap Width Minimum: .297 in, in Housing: .990 in, Housing Diameter Fraction: 1-3/8 in
| Finish | : | Phosphate |
| Housing Diameter | : | 1.375 in |
| Material | : | Carbon Spring Steel |
| Thickness | : | .050 in |
| Type | : | Internal |
