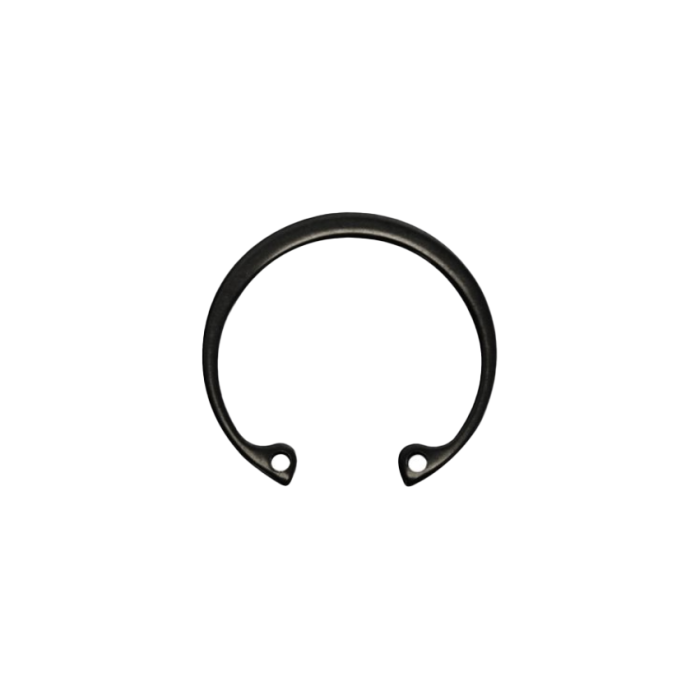

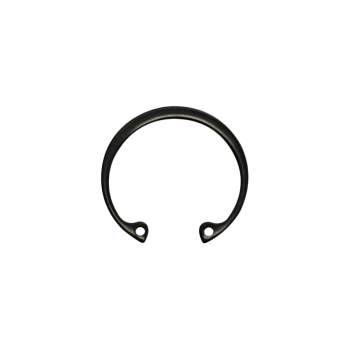

Part Number: HO-087, Weight (lbs.): 0.00205, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: Internal, Hardness: HR30N 66-71, Image: HO-087.png, Country of Origin: USA, Groove Diameter: .931 in, Thickness: .042 in, Style: Stamped, Groove Width: .050 in, Allowable Corner Chamfers: .028 in, Allowable Corner Radii: .035 in, in Groove: .600 in, Edge Margin: .084 in, Free Diameter: .971 in, Groove Depth: .030 in, Groove Diameter to Shaft Concentricity: .004 in, Maximum Thrust Load: 1650 Pound-Force, Manufacturer Part Number: HO-87ST PD, Free Diameter Tolerance: -1.5, Groove Diameter Tolerance: ±.003, Thickness Tolerance: ±.002, Hole Diameter: .062 in, Lug Height: .155 in, Maximum Section: .084 in, Minimum Section: .045 in, Maximum Section Tolerance: ±.005, Hole Diameter Tolerance: -5, Lug Height Tolerance: ±.005, Minimum Section Tolerance: ±.005, Housing Diameter: .875 in, Military Specification: No, Gap Width Minimum: .179 in, in Housing: .545 in, Housing Diameter Fraction: 7/8 in
| Finish | : | Phosphate |
| Housing Diameter | : | 0.875 in |
| Material | : | Carbon Spring Steel |
| Thickness | : | .042 in |
| Type | : | Internal |
