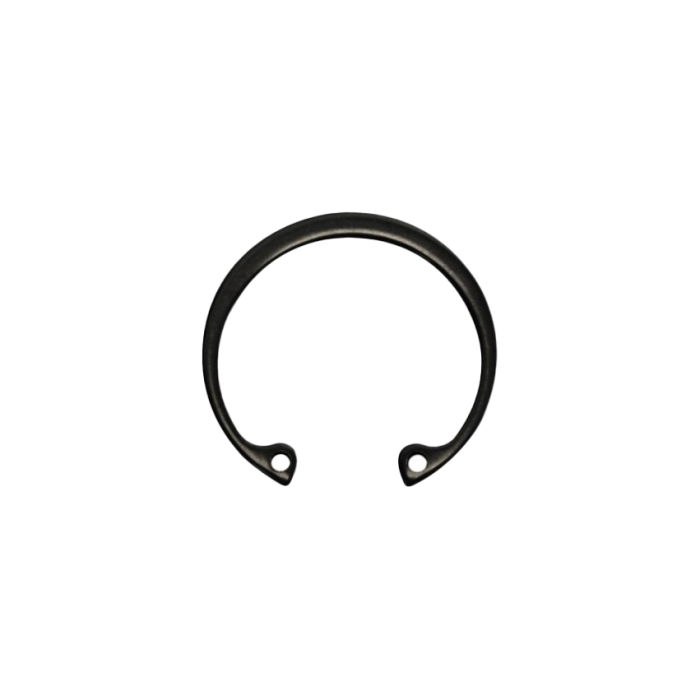

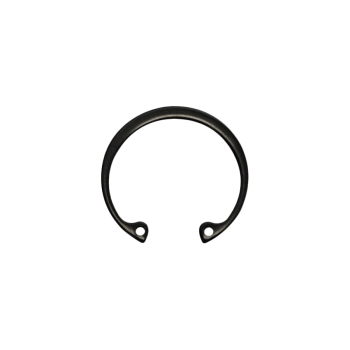

Part Number: HO-075, Weight (lbs.): 0.0013, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: Internal, Hardness: HR30N 67.5-72, Image: HO-075.png, Country of Origin: USA, Groove Diameter: .796 in, Thickness: .035 in, Style: Stamped, Groove Width: .040 in, Allowable Corner Chamfers: .025 in, Allowable Corner Radii: .032 in, in Groove: .490 in, Edge Margin: .069 in, Free Diameter: .831 in, Groove Depth: .020 in, Groove Diameter to Shaft Concentricity: .004 in, Maximum Thrust Load: 1100 Pound-Force, Manufacturer Part Number: HO-75ST PD, Free Diameter Tolerance: -2, Groove Diameter Tolerance: ±.002, Thickness Tolerance: ±.002, Hole Diameter: .062 in, Lug Height: .142 in, Maximum Section: .070 in, Minimum Section: .040 in, Maximum Section Tolerance: ±.004, Hole Diameter Tolerance: -5, Lug Height Tolerance: ±.005, Minimum Section Tolerance: ±.004, Housing Diameter: .750 in, Military Specification: No, Gap Width Minimum: .143 in, in Housing: .450 in, Housing Diameter Fraction: 3/4 in
| Finish | : | Phosphate |
| Housing Diameter | : | 0.75 in |
| Material | : | Carbon Spring Steel |
| Thickness | : | .035 in |
| Type | : | Internal |
