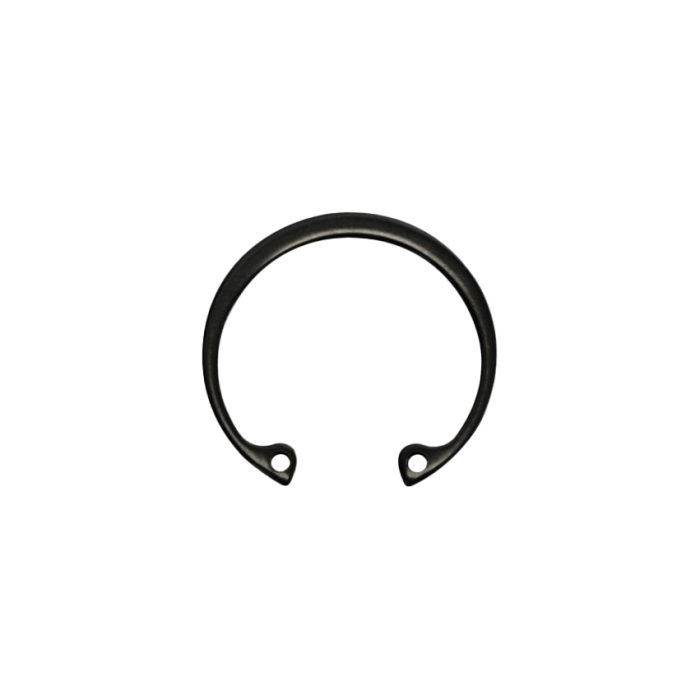

Part Number: HO-045, Weight (lbs.): 0.00043, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: Internal, Hardness: HR30N 69.5-73, Image: HO-045.png, Country of Origin: USA, Groove Diameter: .477 in, Thickness: .025 in, Style: Stamped, Groove Width: .030 in, Allowable Corner Chamfers: .021 in, Allowable Corner Radii: .027 in, in Groove: .274 in, Edge Margin: .036 in, Free Diameter: .498 in, Groove Depth: .010 in, Groove Diameter to Shaft Concentricity: .002 in, Maximum Thrust Load: 530 Pound-Force, Manufacturer Part Number: HO-45ST PA, Free Diameter Tolerance: -2, Groove Diameter Tolerance: ±.002, Thickness Tolerance: ±.002, Hole Diameter: .047 in, Lug Height: .098 in, Maximum Section: .050 in, Minimum Section: .030 in, Maximum Section Tolerance: ±.003, Hole Diameter Tolerance: -5, Lug Height Tolerance: ±.003, Minimum Section Tolerance: ±.003, Housing Diameter: .453 in, Military Specification: No, Gap Width Minimum: .071 in, in Housing: .250 in, Housing Diameter Fraction: 29/64 in
| Finish | : | Phosphate |
| Housing Diameter | : | 0.453 in |
| Material | : | Carbon Spring Steel |
| Thickness | : | .025 in |
| Type | : | Internal |
