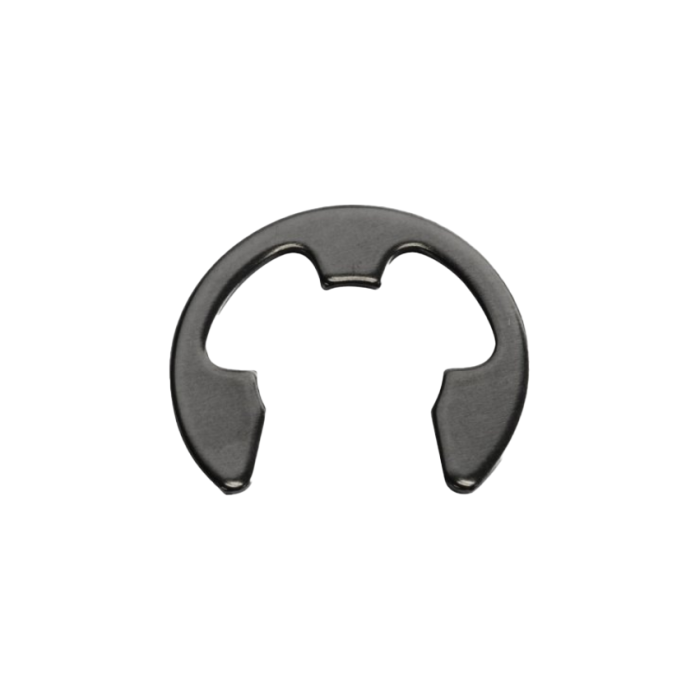

G.L.HUYETT™ E-075 IRR1000-075

Part Number: E-075, Weight (lbs.): 0.0058, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: External E-Clips, Hardness: HRC 47-52, Image: E-075.png, Country of Origin: USA, Groove Diameter: .580 in, Shaft Diameter: .750 in, Thickness: .050 in, Style: Stamped, Groove Width: .060 in, Allowable Corner Chamfers: .065 in, Allowable Corner Radii: .085 in, in Groove: 1.140 in, Clear Outside Diameter: 1.120 in, Edge Margin: .170 in, Free Diameter: .574 in, Groove Depth: .090 in, Groove Diameter to Shaft Concentricity: .004 in, Maximum Thrust Load: 2000 Pound-Force, Manufacturer Part Number: E-75ST PA, Free Diameter Tolerance: -0.6, RPM Limits: 10500 10500 rpm, Shaft Diameter Fraction: 3/4 in, Thickness Tolerance: ±.002
