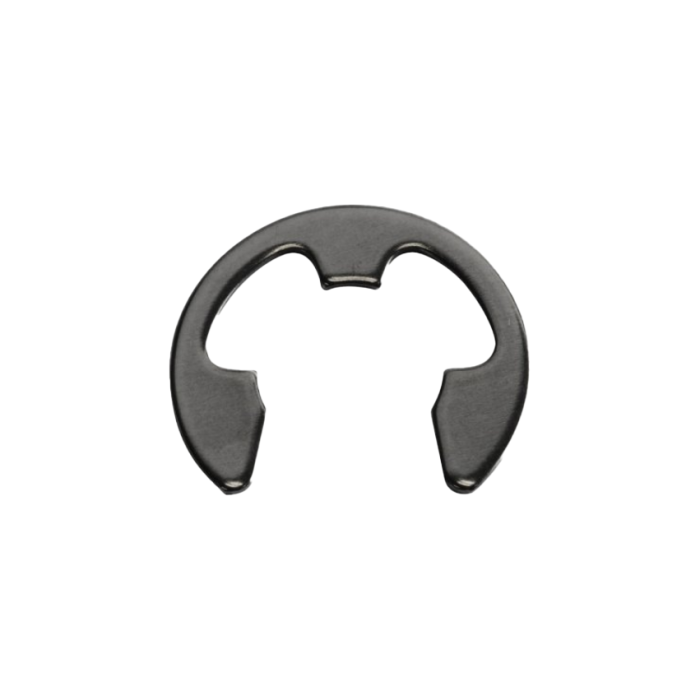

Part Number: E-015, Weight (lbs.): 0.00021, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: External E-Clips, Hardness: HR 30N 66.5-71, Image: E-015.png, Country of Origin: USA, Groove Diameter: .120 in, Shaft Diameter: .156 in, Thickness: .025 in, Style: Stamped, Groove Width: .030 in, Allowable Corner Chamfers: .045 in, Allowable Corner Radii: .060 in, in Groove: .295 in, Clear Outside Diameter: .282 in, Edge Margin: .040 in, Free Diameter: .114 in, Groove Depth: .020 in, Groove Diameter to Shaft Concentricity: .002 in, Maximum Thrust Load: 175 Pound-Force, Manufacturer Part Number: E-15ST PA, Free Diameter Tolerance: -0.666666666666667, RPM Limits: 31000 31000 rpm, Shaft Diameter Fraction: 5/32 in, Thickness Tolerance: ±.002
| Finish | : | Phosphate |
| Material | : | Carbon Spring Steel |
| Outside Diameter | : | 0.282 in |
| Shaft Diameter | : | .156 in |
| Thickness | : | .025 in |
| Type | : | External E-Clips |
