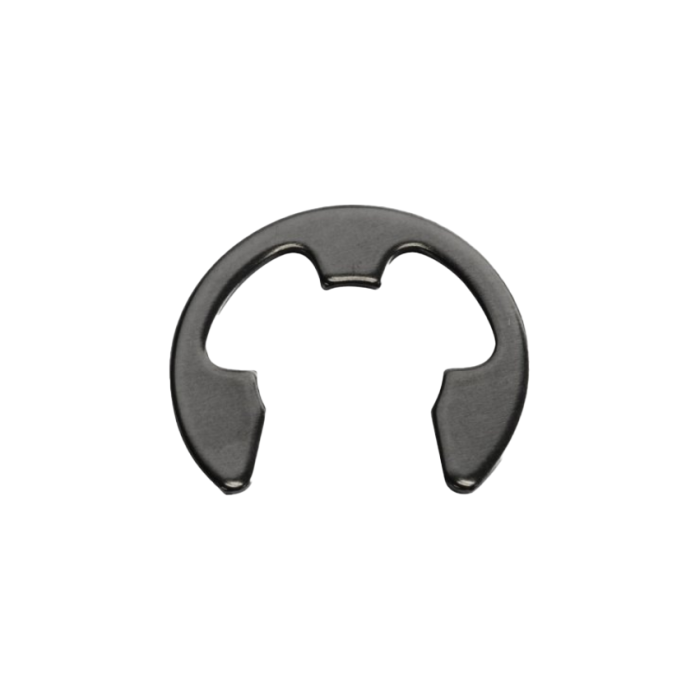

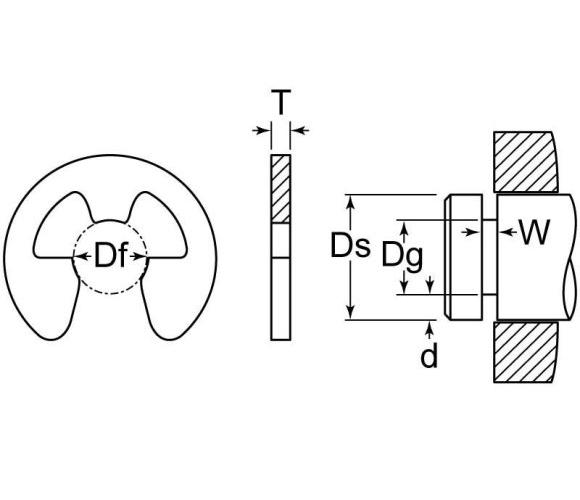

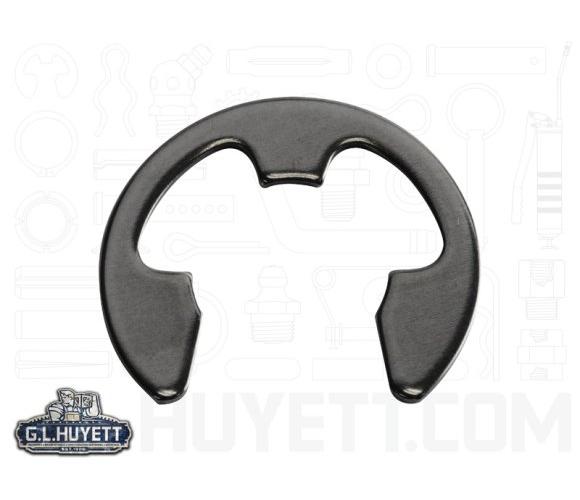

Part Number: E-014, Weight (lbs.): 0.00021, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: External E-Clips, Hardness: HR 30N 66.5-71, Image: E-014.png, Country of Origin: USA, Groove Diameter: .110 in, Shaft Diameter: .141 in, Thickness: .025 in, Style: Stamped, Groove Width: .030 in, Allowable Corner Chamfers: .045 in, Allowable Corner Radii: .060 in, in Groove: .285 in, Clear Outside Diameter: .270 in, Edge Margin: .034 in, Free Diameter: .102 in, Groove Depth: .017 in, Groove Diameter to Shaft Concentricity: .002 in, Maximum Thrust Load: 170 Pound-Force, Manufacturer Part Number: E-14ST PA, Free Diameter Tolerance: -0.666666666666667, RPM Limits: 32000 32000 rpm, Shaft Diameter Fraction: 9/64 in, Thickness Tolerance: ±.002
| Finish | : | Phosphate |
| Material | : | Carbon Spring Steel |
| Outside Diameter | : | 0.27 in |
| Shaft Diameter | : | .141 in |
| Thickness | : | .025 in |
| Type | : | External E-Clips |
