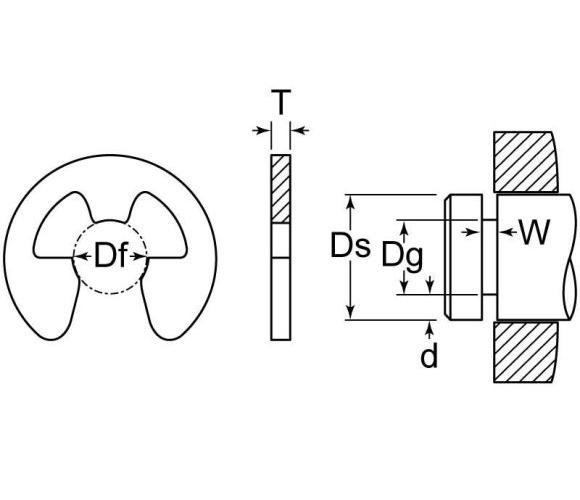

Part Number: E-009, Weight (lbs.): 6e-05, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: External E-Clips, Hardness: HR15N 84.5-87, Image: E-009.png, Country of Origin: USA, Groove Diameter: .070 in, Shaft Diameter: .094 in, Thickness: .015 in, Style: Stamped, Groove Width: .020 in, Allowable Corner Chamfers: .030 in, Allowable Corner Radii: .040 in, in Groove: .200 in, Clear Outside Diameter: .187 in, Edge Margin: .020 in, Free Diameter: .073 in, Groove Depth: .010 in, Groove Diameter to Shaft Concentricity: .002 in, Maximum Thrust Load: 45 Pound-Force, Manufacturer Part Number: E-9ST PA, Free Diameter Tolerance: -0.666666666666667, RPM Limits: 36000 36000 rpm, Shaft Diameter Fraction: 3/32 in, Thickness Tolerance: ±.002
| Finish | : | Phosphate |
| Material | : | Carbon Spring Steel |
| Outside Diameter | : | 0.187 in |
| Shaft Diameter | : | .094 in |
| Thickness | : | .015 in |
| Type | : | External E-Clips |
