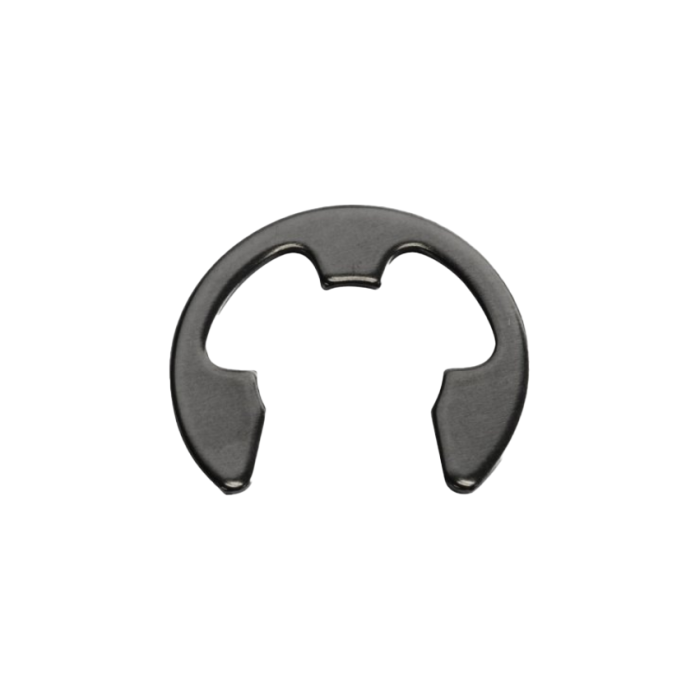

Part Number: E-006, Weight (lbs.): 3e-05, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: External E-Clips, Hardness: HR15N 84.5-87, Image: E-006.png, Country of Origin: USA, Groove Diameter: .050 in, Shaft Diameter: .063 in, Thickness: .010 in, Style: Stamped, Groove Width: .012 in, Allowable Corner Chamfers: .020 in, Allowable Corner Radii: .030 in, in Groove: .165 in, Clear Outside Diameter: .156 in, Edge Margin: .010 in, Free Diameter: .051 in, Groove Depth: .010 in, Groove Diameter to Shaft Concentricity: .002 in, Maximum Thrust Load: 20 Pound-Force, Manufacturer Part Number: E-6ST PA, Free Diameter Tolerance: -0.333333333333333, RPM Limits: 40000 40000 rpm, Shaft Diameter Fraction: 1/16 in, Thickness Tolerance: ±.001
| Finish | : | Phosphate |
| Material | : | Carbon Spring Steel |
| Outside Diameter | : | 0.156 in |
| Shaft Diameter | : | .063 in |
| Thickness | : | .010 in |
| Type | : | External E-Clips |
